Church House 2021

This profile is written and maintained by the homeowner, architect, or builder.

House Notes – Church House

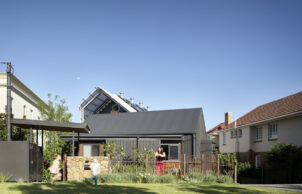

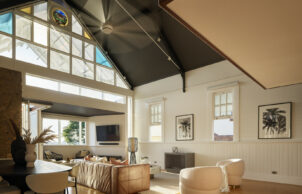

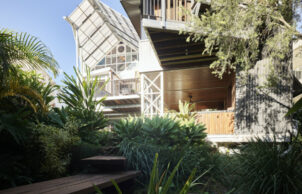

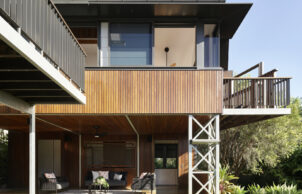

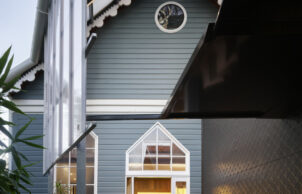

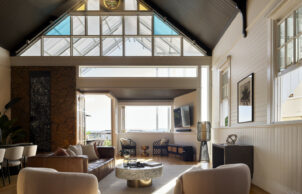

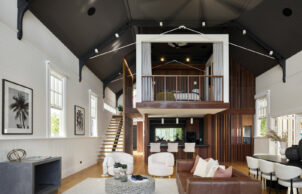

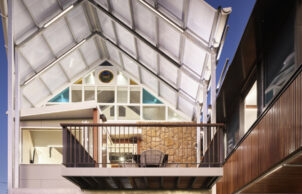

This home is focused on saving a disused 100-year-old church, relocating it and converting it into a family home. This includes the addition of two pavilions: one to the front and one rear of the site. Beneath the church are added an undercover swimming pool and services.

The sustainability of the home features simple passive measures, such as turning the building on-site to face north, and landscape arbours to shade the building to east and west. Additionally there are more active measures, such as home batteries and electric car charge points, smart wiring, mechanical ventilation system to make use of the high (7m) ceiling. The home also includes significant rainwater storage in underground tanks, stormwater re-use through the site in the landscape.

However, for a home in this location, some of the most significant sustainability measures are:

  • The use of a recycled building to reduce the new materials in the build, and
  • Reducing the size of the new build component significantly to two smaller pavilions, and designing the home for flexible use and occupation. From a single family, to inclusion of home-office, a granny flat, extended living (e.g. co-house) or separate rental of part of the home. It also includes a lift for potential disability or aged access. This is to help improve the density of our suburbs and save the wasted bedrooms of many of our homes. The home is designed to incorporate anywhere between 1 and 7 bedrooms, depending on the needs of those living there.

The home is under construction, so the details around the build are evolving.

Designed by Peter McArdle, ptma Architecture.

Renders: Response Image

Photos: Scott Burrows Photographer

SUSTAINABILITY FEATURES

Years Open
2021
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
      Smart home features

    • Passive heating cooling:
    • Cross ventilation
      External planting
      Passive solar designed home
      Shading
      Thermal chimney
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat exchange ventilation system
      Split system airconditioner

    • Active heating cooling:
    • Mech vent reversible system through the church / loft / basement to allow efficient use of warm air in ceiling in winter or vent heat out through roof vents, ... and designed to allow upgrade to efficient air conditioning by future owners if desired
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Underground
      Stormwater management
      Low flow shower heads
      Low flow taps
      Hot water recirculation
      Drip irrigation

    • Underground rainwater storage type:
    • Concrete tanks
    • Underground rainwater storage Size:
    • 25000
    • Water harvesting and saving
    • The stormwater overflowing from the tanks is directed through the gardens and ponds prior to being pumped to the kerb and channel only when required (overflowing)
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Electric Vehicle Type
    • Tesla with Powerwall and car charge point (being confirmed)
    • Window Protection:
    • Automation/controls
      Awnings (external)
      Blinds
      Deciduous tree/vegetation
      Eaves
      External window hoods/surrounds
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • 100m2 recycled church forms the core of the home, additional recycled features being added
    • Sustainable materials:
    • Significant recycled materials, avoiding carpets, minimising plasterboard use, Australian hardwoods
    • Recycled and reused materials:
    • Doors
      House - Relocated on to another site
      House - all materials reused
      Glass
      Roofing material
      Timber
      Windows

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – polyester
    • Ceiling Rating:
    • 3
    • Floor Type:
    • Bulk – polyester
    • Floor Rating:
    • 1
    • Under Roof Insulation Type:
    • Reflective foil-backed batts
    • Under Roof Insulation Rating:
    • 1
    • Internal Walls Insulation Type:
    • Bulk – polyester
    • External Walls Rating:
    • 2
    • External Walls Type:
    • Bulk – polyester
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.5 star. Complies witih 2017 6 Star rating, final rating tbc (under construction and being improved)
    • Renewable energy used:
    • Energy storage/battery

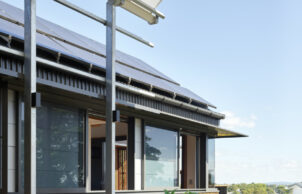

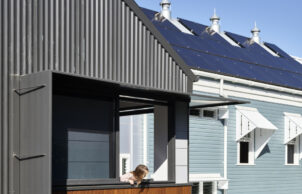

      Solar PV grid connect
    • Size of PV system:
    • Close to 20kW solar PV with 14kWh min battery storage
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • TBA (approx. $2M) ongoing 2021
    • Cost estimate of sustainable home/features:
    • TBA
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 450m2 internal area including indoor pool (but only 80m2 of NEW internal living area)
    • BAL Rating
    • No BAL rating requirements at time of construction
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Concrete blocks
      Lightweight construction (timber frame)
      Reverse Brick veneer
      Stone
      Timber
    • Window and Door Types
    • Double hung
      Louvre windows
      Low-e, films
      Sliding windows/doors
      Stacking windows/doors
    • Universal design accessability
    • Adaptive design
      Multi-generational
      Wheelchair accessible
    • Universal Design Features
    • 80cm minimum door opening width
      100cm minimum door opening width
      Contrasting colours and material for vision impaired
      Hobless showers
      Lever handles for doors (no knobs)
      Lift/elevator
      Minimum 110cm wide hallways
      Ramps and path gradients must be less than 20:1
      Shower head on rail for various heights
      Strong fittings like towel rails that can be used as hand rails
      Tapware to be easily accessed from outside the shower
      Window openings easily accessible
    • Number of bedrooms
    • 7
    • Number of bathrooms
    • 4
HEALTHY HOME FEATURES
    • Healthy home features
    • Cross flow ventilation
      Heat recovery ventilation (HRV)
      Low VOC paints/sealer/varnish
      Natural light and ventilation
Location
Coorparoo QLD 4151
    • Housing Type:
    • Co-housing with home-office or two independent homes
    • Project Type:
    • Building relocation, renovation and new build
    • Designer
    • PTMA Architecture
