House Notes – Elwood Farm

Since retiring 5 years ago, my wife and I have taken the opportunity to enact a plan we have had for many years which is to build a sustainable home and live (as far as possible) a self-sufficient lifestyle, I think we have largely accomplished this.

Our home is of rammed earth construction providing excellent thermal and acoustic properties. Also it is almost 100% maintenance free and a very pleasing colour and texture. The walls are 300ml thick which makes them virtually sound proof.

We have louvre windows strategically placed so that we can capture the prevailing breezes in summer and also prominent windows on the north aspect to capture the winter sun.

All of our rooms have ceiling fans for cooling including on the large verandas at the front and back of the house and our heating is from a slow combustion wood fired heater using mostly pest species of timber sourced on site.

Since last year we have also installed air conditioning for cooling on the hottest days however, as with our major appliances of the home, this system is only used when the sun is shining and we are generating our own solar power.

The floor inside the house is make of bamboo and all of our lighting is low energy and our water outlets and toilets are low flow units.

We use all of the captured rain water from our roofs for domestic purposes and so are not connected to town supply.>We also have a small dam that we pump from to a high tank which we than gravity feed down to strategically placed taps for the purposes of water supply for our chickens and the gardens.

Our water is heated with an evacuated tube solar system and we have 6.5 kw of solar PV cells which supplies the majority of our electricity needs while also providing a proportion of green energy back to the grid (for which we are paid).

Since connecting to solar electricity, we have had credits each month on our power account instead of a bill except for two month where we had the air con on every day through a heat wave, on those two months our electricity costs totaled $17.00 which was easily absorbed by our outstanding credit balance .<p

Our house also has an internal access cellar for storage of preserves and wine etc.

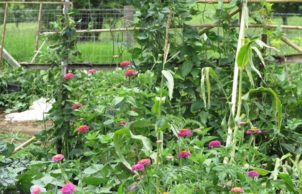

We grow most of our own fruit, nuts and vegies with an extensive garden and orchard area. All of our gardens and trees are fertilized with compost and animal manure that we generate on site. To utilize the surplus produce, my wife bottles fruit, pickles and jams etc. and I also make wine from surplus fruit and veg . I have also made a solar dehydrator which we use for drying tomatoes, beans, bananas, pineapple, apples and many other things. We also have chickens for meat and eggs and we also grow fish for the table in our aquaponics system, which also provides a wide variety of vegetable from tomatoes and capsicums to lettuces herbs and even strawberries. The most exciting part of this system though is that we are also growing fish for our own consumption. These are jade perch which is an omnivorous Australian native species which grow quickly and have exceptional eating qualities.

We would be happy to welcome anyone who would like to see what we have done and hopefully they might take away some ideas for themselves to make their own homes more sustainable.

Our hope is that people will see that thy can still live sustainably even while enjoying all of the comfort of a modern home.

Please drive up the driveway, there is plenty of room for parking and turning near the house.

Sustainability Features

Years Open
2018
2019
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Split system airconditioner
    • Water heating:
    • Solar hot water (evacuated tube)
    • Water harvesting and saving features:
    • Above ground rainwater storage
      Underground rainwater storage
      Low flow shower heads
      Low flow taps

    • Underground rainwater storage type:
    • Poly tanks
    • Underground rainwater storage Size:
    • 23,000L
    • Above ground rainwater storage Type:
    • Poly tanks
    • Above ground rainwater storage Size
    • 46,000L
    • Storage connected to
    • Garden
    • Water harvesting and saving
    • Dam water is gravity fed to garden
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Tubular skylight
    • Window Protection:
    • Blinds
      Deciduous tree/vegetation
      Drapes/curtains

    • Window Protection:
    • large covered verandah at front and rear of the house (east and west)
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Colorbond for cladding
    • Recycled and reused materials:
    • Doors
      Kitchen cabinets
      Light fixtures
      Pallets
      Rocks/stone
      Shipping container
      Sleepers
      Timber

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
    • Ceiling Type:
    • Bulk - glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6.6kW
    • Average Daily Energy Consumption:
    • 2.35 kwh
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 292m2
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Rammed earth
    • Window and Door Types
    • Bi Fold
      Louvre windows
      Low-e, films
      Sliding windows/doors
      Sun Tunnel/SolaTube
      180 degree opening doors
    • Universal Design Features
    • 80cm minimum door opening width
      Hobless showers
      Minimum 110cm wide hallways
      No stairs/steps
      Pull out shelving easily accessible in wheelchairs
      Ramps and path gradients must be less than 20:1
      Shower head on rail for various heights
      Window openings easily accessible
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Fruit and nut orchard
    • Garden / Outdoors
    • Aquaponics
      Bee hotels/friendly
      Chickens
      Composting
      Edible garden
      Organic
      Native plants
      Water wise plants

    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
HEALTHY HOME FEATURES
    • Healthy home features
    • Chemical free cleaning products used
      Cross flow ventilation
      Natural light and ventilation
Location
Limpinwood NSW 2484
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • J Beohm
    • Designer
    • Owner designed
