Oakey House 2023

Oakey House

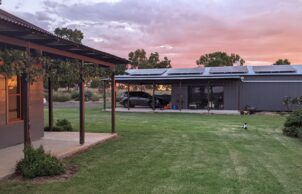

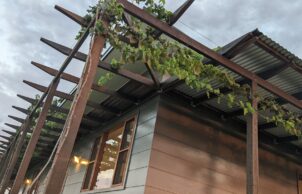

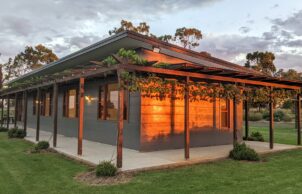

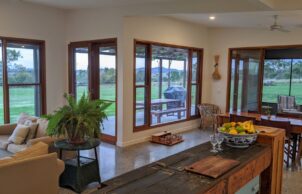

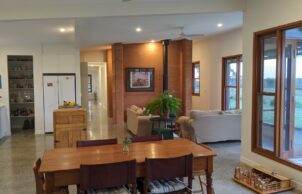

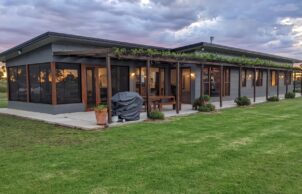

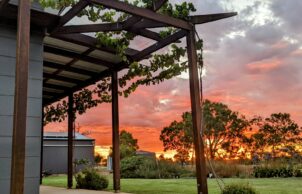

Built to a modest budget, this 8.9 star home was completed in May 2021. The home features Wagner’s Earth Friendly Concrete, which reduces CO2 emissions associated with conventional Portland cement by 80 to 90% according to the manufacturers. All concrete floors throughout the home have a polished finish which maximises the benefit of thermal mass provided by the slab. Additional thermal mass internally is provided with a feature rammed earth section of wall. Timber framed windows with Low E glass to the living areas help to achieve the high energy rating because of the insulating properties of the complete window assemblies. The room layout ensures that all living areas & bedrooms are north facing for winter passive solar heating. Deciduous vines are growing on the west facing pergola and the north facing pergola to reduce heat gain in summer.

The home will be open to the public on Sunday 19th March 2023. Bookings are essential and can be found via this link https://events.humanitix.com/shd-house-tour-oakey-house

Sustainability Features

Years Open
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Deciduous planting around house
      Passive solar designed home
      Shading
      Thermal mass

    • Passive heating cooling:

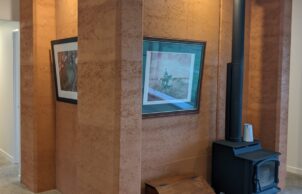

    • Rammed earth internal wall for additional thermal mass
    • Active heating cooling:
    • Ceiling fans
    • Water heating:
    • Gas
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
    • Above ground rainwater storage Type:
    • Tanks
    • Above ground rainwater storage Size
    • 47 000 litres
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Awnings (external)
      Deciduous tree/vegetation
      Eaves
      Solar pergola
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Earth friendly concrete for concrete slab & footings. Polished concrete throughout negating the need for floor coverings & other finishes. Cypress pine frame sustainably sourced & naturally termite resistant.
    • Recycled and reused materials:
    • Benchtops
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls
    • Ceiling Type:
    • Bulk – cellulose fibre
    • Ceiling Rating:
    • R4.0
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R4.0
    • External Walls Rating:
    • R2.5 Additional insulation to western wall.
    • External Walls Type:
    • Bulk – cellulose fibre
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Energy star rating:
    • 8.9
    • Renewable energy used:
    • Energy storage/battery
      Solar PV off-grid
    • Size of PV system:

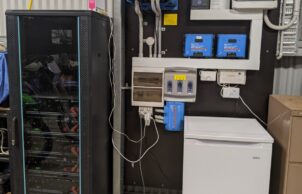

    • 7.8kW with 21 kW hours of battery storage 10kVa Inverter
    • Average Daily Energy Consumption:
    • See off grid system details. Back up generator has not been required.
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • 380000
    • Cost estimate of sustainable home/features:
    • None
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 286 m2
    • BAL Rating
    • No BAL rating requirements at time of construction
    • Roof
    • Metal (Zincalume)
    • Wall Materials
    • Rammed earth

    • Wall Materials
    • Hardies Stria Fibre Cement
    • Window and Door Types
    • Double hung
      180 degree opening doors
    • Universal design accessability
    • Adaptive design
      Multi-generational
      Universal access
      Wheelchair accessible
    • Universal Design Features
    • 80cm minimum door opening width
      Hobless showers
      No stairs/steps
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Chickens
      Drip irrigation
      Edible garden
      Frog friendly
      Orchard
      Native plants
      Water wise plants
    • Waste Reduction Practices:
    • Recycle
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
      Indoor plants for air filtration
      Natural light and ventilation
Location
Oakey QLD 4401
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Open with support of
    • Renew Toowoomba Branch
    • Builder
    • Geoff Gibson Homes https://www.geoffgibsonhomes.com.au
    • Designer
    • Eco Blueprints https://www.ecoblueprints.com.au
