8.2 Star Cottage with Contemporary Addition 2018

This profile is written and maintained by the homeowner, architect, or builder.

House Notes – 8.2 Star Cottage with Contemporary Addition

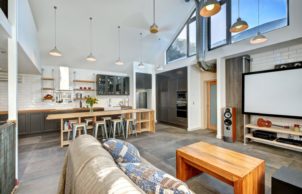

A TS4 Living home that proves you don’t need to demolish the past to live in the future. The brief: take a small, poorly orientated listed cottage built in 1904 and transform it into a 165m2 family home for the future. The response: add a new addition with ample northern light, and a basement and mezzanine floor, creating an incredible space that doubles the living area without dramatic impact on the small allotment.

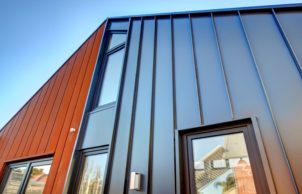

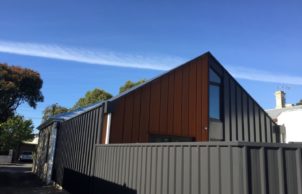

The single-storey home had a typical lean-to kitchen and bathroom addition to the rear. Very cold in the winter and ferociously hot in the summer, the addition was demolished leaving the original house intact. The use of contemporary cladding materials, like wide tin profiles in colorbond and Corten Steel, visually delineates old from new.

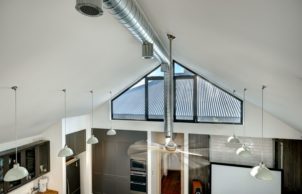

The home is designed to be climate responsive and comfortable – using orientation as well as the latest technologies. For example, home automation controls external blinds for shading, ceiling fans and windows for air movement; it also monitors the temperature and humidity, to automatically vent the home at night time via an air transfer system during the summer months and move warmth created by a radiant/convection wood heater in the winter.

A 5.4kW solar panel array provides energy for free hot water produced by the thermodynamic hot water system, while the naturally lit basement – where the master bedroom with ensuite is located – acts as a huge thermal store. Thermal performance has increased almost eight-fold to 8.2 Stars, completely transforming the home and the family’s lifestyle.

Architect: Paul Hendy, TS4 Living.

Builder: Weber Building Services.











This house achieved a NatHERS rating of 8.2 stars using NatHERS accredited software.

Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

SUSTAINABILITY FEATURES

Years Open
2017
2018
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
      Smart home features

    • Energy efficiency:
    • Basement used as a thermal store for coolth and warmth during the summer and winter months, respectively. Earth tubes for thermally moderated natural ventilation. Automated air transfer system to move cool and warm air around the home.
    • Passive heating cooling:
    • Cross ventilation
      Shading
      Thermal chimney

    • Passive heating cooling:
    • Earth tubes and habitable basement
    • Active heating cooling:
    • Ceiling fans
      Heat pump

    • Active heating cooling:
    • Automated air transfer and ventilation system
    • Water heating:
    • PV-supplied thermodynamic solar hot water
    • Water harvesting and saving features:
    • Drip irrigation
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Automation/controls
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Recycled aggregate low-carbon concrete, plantation-grown timber frame
    • Recycled and reused materials:
    • Aggregate
      Concrete
      Insulation
      Paving
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      Floor

    • Ceiling Type:
    • Rigid PIR insulation and fibreglass batts
    • Ceiling Rating:
    • R7.2 (summer/winter averaged)
    • Floor Type:
    • Rigid XPS insulation boards
    • Floor Rating:
    • R1.2
    • Other Insulation Methods:
    • Sealed build envelope with microporous breathable build wrap and reflective rigid PIR insulation beneath, low Air Change per Hour (ACH)
    • Internal / External Walls Type:
    • 90mm timber frame with rigid PIR insulation and fibreglass batts
    • Internal / External Walls Rating:
    • R5.6
    • Internal Walls Insulation Type:
    • Rigid PIR insulation and fibreglass batts
    • Internal Walls Insulation Rating:
    • R5.4 (summer/winter averaged)
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 5.4kW
    • Average Daily Energy Consumption:
    • > 1kWh
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $225,000
    • Cost estimate of sustainable home/features:
    • $28,000
    • Estimate of annual savings:
    • $4100 p.a.
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 165m2
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Timber

    • Wall Materials
    • High performance multi layered construction with PIR rigid insulation board and CSR insulation products
    • Window and Door Types
    • Clerestory windows
      Double glazing
    • Universal design accessability
    • Adaptive design
      Multi-generational
    • Universal Design Features
    • 80cm minimum door opening width
      Hobless showers
      Minimum 110cm wide hallways
      Pull out shelving easily accessible in wheelchairs
      Slip resistant flooring
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Drip irrigation
      Green walls
      Organic
      Native plants
    • Waste Reduction Practices:
    • Recycle
      Repair
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Cross flow ventilation
      Low VOC paints/sealer/varnish
      Natural light and ventilation
Location
Beulah Park SA 5067
    • Housing Type:
    • Standalone House
    • Project Type:
    • Retrofit
    • Builder
    • Weber Building Services
    • Designer
    • TS4 Living
