Heathmont Haven 2021

This profile is written and maintained by the homeowner, architect, or builder.

House Notes – Heathmont Haven

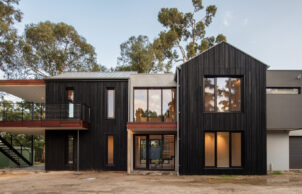

I’ve always been interested in environmental issues, gardening & sustainability & the opportunity to build my own sustainable dream house came about, when in 2016, I began the process of subdividing my one acre block in Heathmont into three lots: one with the original family home, plus two vacant blocks. This of course took much longer than I anticipated & work finally began on my new home in May 2019; it was completed in May 2020. The block is 1076m2, north-facing & backs onto Dandenong Creek reserve. I wanted to take advantage of what I hoped would be lovely views along the reserve towards Mount Dandenong, so the house is an ‘upside down’ house, with the kitchen, living area & master bedroom on the second storey. My youngest daughter and I put the concept together & an architectural draftsman friend took all of our ideas & made them into a practical & (I think) beautiful home.

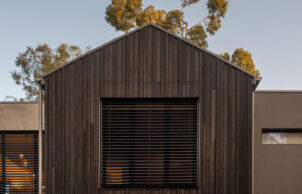

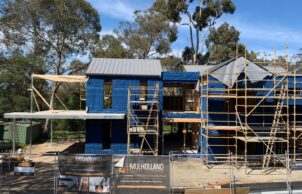

The size of the block (we have a minimum 864m2 lot size in our area) & the fact that it was going to be two storey, meant that it would need to be a reasonable sized house. I tried to think about future proofing, as I’d like to live here forever if possible & also wanted the house to be flexible in terms of use. The new house was built along passive house principles & has an airtight double membrane with airtightness of 1.71ACH & a Heat Recovery Ventilation system. I have 9.99kw of solar panels, with facility for future battery a 21500L underground water tank for toilets, washing machine & garden, motorised external venetians & blinds, double-glazed uPVC windows, a wood pellet heater & is all electric. The garden does (or will) encompass locally indigenous plantings, deciduous trees on the north side, chooks, vegies, compost & worm farm.

This house achieved a NatHERS rating of 7.4 stars using NatHERS accredited software. Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

SUSTAINABILITY FEATURES

Years Open
2021
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Deciduous planting around house
      External planting
      Heat recovery ventilation system
      Passive solar designed home
    • Active heating cooling:
    • Ceiling fans
      Heat exchange ventilation system
      Split system airconditioner

    • Active heating cooling:

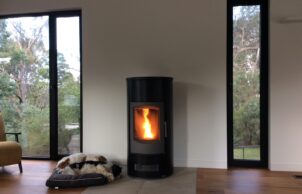

    • Pellet heater
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Underground
      Low flow shower heads
    • Average water consumption per day:
    • 60L
    • Underground rainwater storage type:
    • Concrete tank
    • Underground rainwater storage Size:
    • 21500L
    • Energy Efficient Lighting

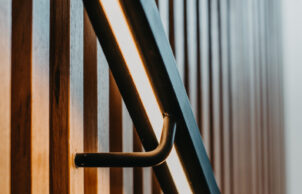

    • LED lights throughout
      Natural daylight
      Skylight
      Solar skylight
    • Window Protection:
    • Adjustable Shading
      Automation/controls
      Blinds
      Deciduous tree/vegetation
      Honeycomb blinds
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Recycled timber posts & shelves; earthwool insulation (recycled glass); global green tag certified wall & floor tiles; pellet heater (uses compressed sawdust pellets)
    • Recycled and reused materials:

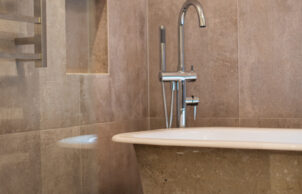

    • Bath
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6
    • Floor Type:
    • Bulk - polystyrene board
    • Floor Rating:
    • R2
    • External Walls Rating:
    • R4
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.4
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 9.99
    • Average Daily Energy Consumption:
    • 3 (summer) 6 (winter)
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 291m2
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Hebel blocks
      Lightweight construction (timber frame)
      Timber
    • Window and Door Types

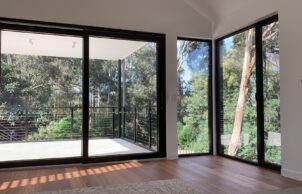

    • Double glazing
      Low-e, films
      Skylights
      Sliding windows/doors
      Tilt and turn
    • Universal design accessability
    • Adaptive design
      Multi-generational
      Wheelchair accessible
    • Universal Design Features
    • 100cm minimum door opening width
      Hobless showers
      Lever handles for doors (no knobs)
      Lift/elevator
      Minimum 110cm wide hallways
      Shower head on rail for various heights
      Tapware to be easily accessed from outside the shower
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Chickens
      Composting
      Edible garden
      Frog friendly
      Local indigenous plants
      Orchard
      Organic
      Native plants
      Water wise plants
      Wicking beds
      Worm farm
    • Waste Reduction Practices:
    • Compost all food scraps
      Make jams/conserves
      Pickle and preserve food
      Recycle
      Repair
      Swap with friends and neighbours
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Chemical free cleaning products used
      Cross flow ventilation
      Heat recovery ventilation (HRV)
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
Location
Heathmont VIC 3135
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Mulholland Design & Construction
