A Biophilic Unit 2024

House Notes – A Biophilic Unit

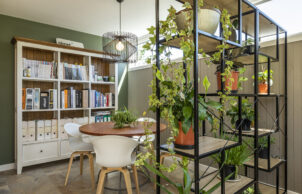

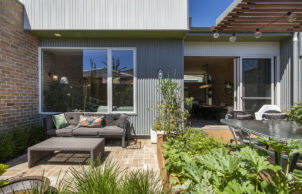

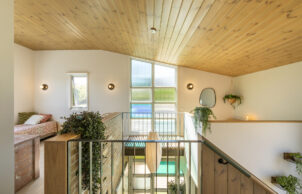

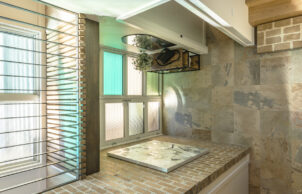

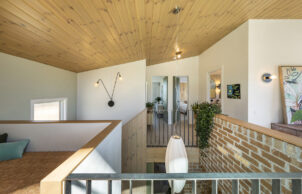

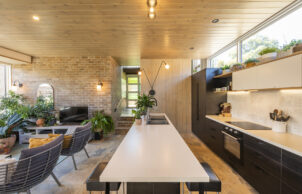

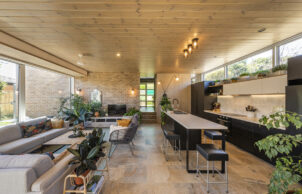

Our focus was to design a house with no gas bills, minimal power bills, an abundance of direct sunlight and good cross-ventilation. We were otherwise interested in creating a biophilic indoor-outdoor space by using recycled bricks internally (which add to the insulated thermal mass), slate tiles, timber lining to walls and ceilings – as well as provide many locations for a variety of indoor plants.

Sustainability Features

Years Open
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Stormwater management
      Low flow shower heads
      Low flow taps
    • Average water consumption per day:
    • 90 LT
    • Above ground rainwater storage Type:
    • Rainwater Tank
    • Above ground rainwater storage Size
    • 4000 LT
    • Energy Efficient Lighting
    • Natural daylight
    • Window Protection:
    • Drapes/curtains
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Aggregate
      Bricks
      Railway sleepers
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6
    • Floor Type:
    • Bulk - glass wool
    • Floor Rating:
    • R2
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R1
    • External Walls Rating:
    • R2.7
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 8 stars
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 4.5kW
    • Average Daily Energy Consumption:
    • 60kWh
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $600,000
    • Cost estimate of sustainable home/features:
    • $600,000
    • Estimate of annual savings:
    • 2000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 213 sqm
    • BAL Rating
    • No BAL rating requirements at time of construction
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Brick veneer
      Lightweight construction (timber frame)
      Metal (Colorbond)

    • Wall Materials
    • Weathertex cladding
    • Window and Door Types
    • Awning
      Casement
      Double glazing
      Low-e, films
      Sliding windows/doors
    • Universal Design Features
    • Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      No Corner cupboards
      Shower head on rail for various heights
      Slip resistant flooring
      Tapware to be easily accessed from outside the shower
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Local indigenous plants
      Water wise plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Pickle and preserve food
      Recycle
HEALTHY HOME FEATURES
    • Healthy home features
    • Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
Location
Doncaster East VIC 3109
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • John Pyke - Complex Timber Structures
    • Designer
    • Planet Architecture
