Apple Crate Shack 2019

Location
Flowerpot TAS 7163
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Chosen Charity
    • Great Cycle Challenge - fighting kids cancer
    • Builder
    • R. B. Edwards & Son
    • Designer
    • AKA architects



About Apple Crate Shack

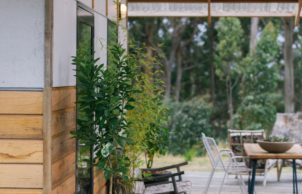

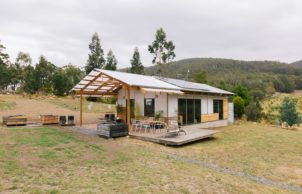

Apple Crate Shack is an exploration of adequacy: the design is guided by needs, not wants. A modest footprint but generous volume satisfies all spatial and functional requirements. Circulation is succinct and efficient: strong connections extend spaces to engage with the surrounding landscape. The project is an investigation of ideas: the local fruit industry is referenced by the ‘apple crate’ aesthetic. All timber cladding was milled on site from trees that had to be felled. A limited material palette speaks of durability and economy.

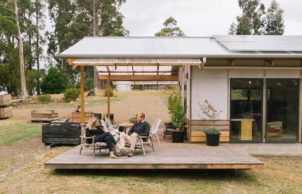

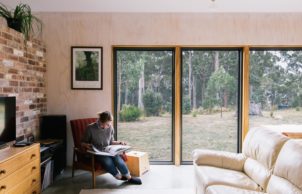

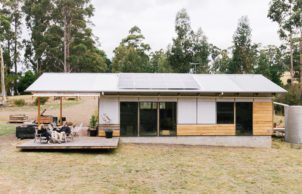

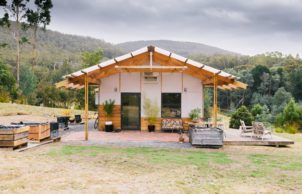

The house is a successful demonstration of effective passive solar design principles. This project is about doing the simple things well. Orientation to exploit and employ direct solar gain: wide eaves protect the large double-glazed windows from the summer sun while allowing the winter sun to slip underneath and penetrate deep into the house. The insulated polished concrete slab stores the daytime winter heat for re-radiation at night. A modest 2.8k/w array of solar panels produces more power than required. The efficient heat-pump provides a boost on the rare occasions it is needed.

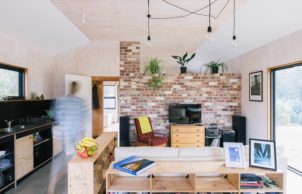

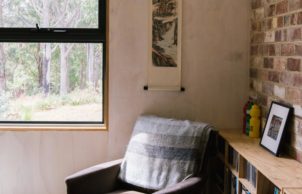

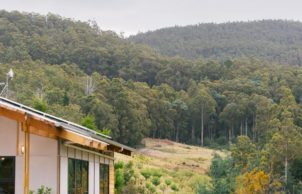

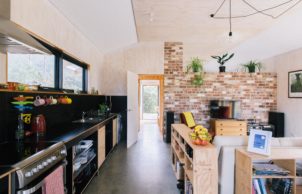

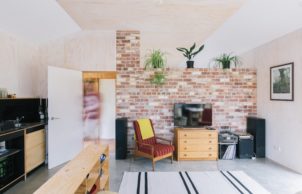

The project was also one of resourcefulness: second hand fixtures and recycled materials were sourced when available. The internal recycled brick wall includes salvaged, hand-cleaned bricks from three different sites and provides additional thermal mass. The multi-coloured roof is a variety of odd Colorbond sheets. This experiment saved some money while providing the necessities and a chance to experiment. Incorporating recycled and locally sourced materials has helped to reduce the environmental footprint of the project, in unison with the application of fundamental sustainable initiatives.

Donations on the day will go to Great Cycle Challenge
Designed by AKA architects
Photography by Jordan Davis

Read more about Apple Crate Shack in Sanctuary #45 – Back to Basics and architect Andrew Kerr Sanctuary #48 Designers in profile



This house achieved a NatHERS rating of 7.1 stars using NatHERS accredited software (First Rate5). Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

SUSTAINABLE FEATURES

Years Open
2019
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Heat pump
    • Water heating:
    • Second-hand electric cylinder
    • Water harvesting and saving features:

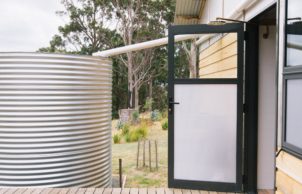

    • Above ground rainwater storage
    • Above ground rainwater storage Type:
    • Water tank
    • Above ground rainwater storage Size
    • 11,200L
    • Storage connected to
    • Whole house
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Blinds

    • Window Protection:
    • Overhanging eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Recycled and locally sourced materials. Recycled bricks, hand-cleaned from three different sites. Odd Colorbond roof sheets. Second-hand hot water cylinder.
    • Sustainable materials:
    • Timber cladding milled onsite from trees that needed to be felled.
    • Recycled and reused materials:
    • Appliances
      Basins/sinks
      Bricks
      Glass
      Paving

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R4.1
    • Floor Type:
    • Bulk - polystyrene board
    • Floor Rating:
    • R1.2 - R2.4
    • External Walls Rating:
    • R2.5
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.1
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 2.8kW
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $103,000
    • Cost estimate of sustainable home/features:
    • $12,000
    • Estimate of annual savings:
    • $1200
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 61m2
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
    • Window and Door Types
    • Awning
      Double glazing
      180 degree opening doors
    • Universal Design Features
    • 80cm minimum door opening width
      Contrasting colours and material for vision impaired
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      No stairs/steps
      No Corner cupboards
      Semi recessed basins
      Space around toilets for ease of access in wheelchairs
    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Native plants
      Water wise plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
HEALTHY HOME FEATURES
    • Healthy home features
    • Cross flow ventilation
      Natural light and ventilation
      No carpets
      Wax based sealer/finish
