Bellairs Avenue 2017

House Notes – Bellairs Avenue

When Kat and Joel bought their home 14 years ago, it was a rustic old Edwardian shopfront with a train carriage in the backyard. Their shared passion for sustainable living saw them plan a complete revamp of the property, rebuilding a smarter, more efficient home in its place.

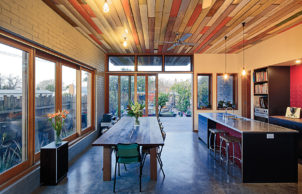

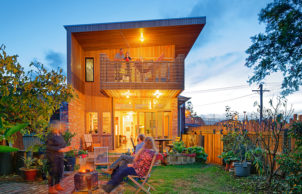

A recycled brick and radially sawn timber clad double storey extension to the single storey, the house includes sustainable design and building principals, particularly with the use of recycled materials, orientation and building practices.

Your gold coin donation goes entirely to the amazing team at Climate For Change

Designed by Studio Faithfull and constructed by Fido Projects

Features includes;

  • Hydronic system of heating and cooling
  • R5.0+R1.5 ceiling rating
  • Polyester batts & foil backed blanket ceiling
  • Efficient lighting
  • Efficient appliances
  • Draught proofing
  • 5 Star (But Definitely More) energy rating
  • Gold Coin donation for Climate For Change
  • 100mm thick polystyrene under slab
  • R2.5+ walls rating
  • Polyester batts & anti-glare Foilboard Ultra 20 Insulation Panel walls type

Sustainability Features

Years Open
2016
2017
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Draught proofing
      Efficient appliances
      Smart home features

    • Energy efficiency:
    • Passive solar design
    • Passive heating cooling:
    • Shading
      Cross ventilation
    • Active heating cooling:
    • Hydronic
      Ceiling fans
    • Water heating:
    • Solar hot water (flat panel)
    • Water harvesting and saving features:
    • Above ground storage
      Low flow shower heads
      Low flow taps

      Storage connected to
    • Above ground rainwater storage Type:
    • Water Tanks
    • Above ground rainwater storage Size
    • 9000L
    • Storage connected to
    • Garden
      Toilet
      Laundry
    • Water harvesting and saving
    • Redwater Diverters
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Ceiling lining boards, timber floors, shelving, baths, fences
    • Sustainable materials:
    • Marmoleum, radially sawn timber cladding
    • Recycled and reused materials:
    • Bricks
      Concrete
      Aggregate
      Timber
      Doors
      Kitchen/bath cabinets

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal and external walls
      Floor
    • Ceiling Type:
    • Polyester batts & foil backed blanket
    • Ceiling Rating:
    • R5.0+R1.5
    • Floor Type:
    • 100mm thick polystyrene under slab
    • Internal / External Walls Type:
    • Polyester batts & anti-glare Foilboard Ultra 20 Insulation Panel
    • Internal / External Walls Rating:
    • R2.5+
RENEWABLE ENERGY SPECIFICATIONS
    • Energy star rating:
    • 5 Star (But Definitely More)
    • Renewable energy used:
    • Solar PV grid connect
HOUSE DESIGN SPECIFICATIONS
    • Window and Door Types
    • Double glazing
      Low-e, films

    • Window and Door Types
    • Max U Value of 3.25 & Max SHGC of 0.62
    • Number of bedrooms
    • 4
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Water wise plants
      Edible garden
      Organic
      Permaculture
      Composting
      Native plants
      Chickens
      Aquaponics
HEALTHY HOME FEATURES
    • Healthy home features
    • Marmoleum, low VOC paints, no MDF, reduced plaster
Location
Seddon VIC 3011
    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
    • Builder
    • Fido Projects
