House Notes – Bundy Gully

The original house was a small brick veneer cottage build in the 1950s. It survived the 1962 fires. In the 1980s a self-build mudbrick extension was added by new owners. The result was a house that was a drafty, dark, cold rabbit warren. The property however had huge potential to be sustainable, with the space, water and soil (unusual in St Andrews) for a large vegetable garden and orchard.

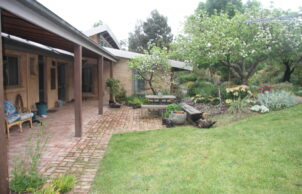

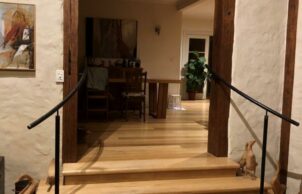

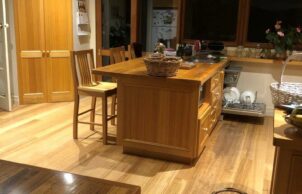

We improved the sustainability of the house firstly by redesigning the kitchen, dining and living areas, removing walls to bring in light and sun and insulating floors, walls and ceilings. Windows and doors were double glazed with toughened glass to protect against fire. This eliminated drafts and brought the sun into the house. A veranda built on the north side shaded the north wall and significantly reduced heat absorption in summer. An old Aga with a wet back was installed and solar hot water added. This meant that the hot water booster is used only for a few weeks in spring and autumn. The Aga chugs through autumn, winter and spring providing cooking, house warming, hot water and comfort. Our timber kitchen emerged out of salvaged timbers from a poultry farm shed.

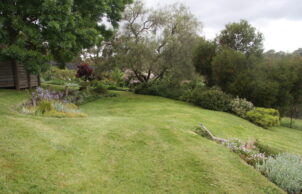

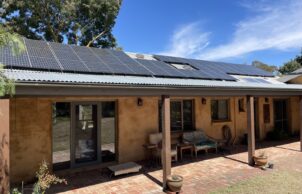

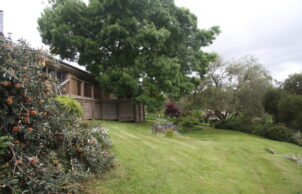

Over time the rest of the house was double glazed, a 24 panel solar system added, more insulation added to ceilings and walls, fire resistant paint added to all external timbers, and fire retardant foam strips added under the corrugated iron roof , and colourbond cladding added to aging fascias to reduce risks from ember attack. Gravel paths and paving increased the distance between the house and garden, which was planted with fire-resistant plants.

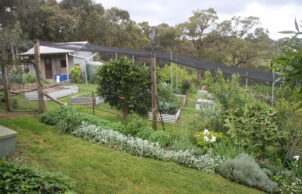

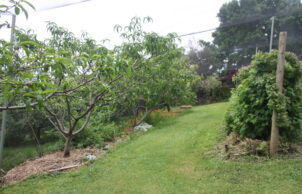

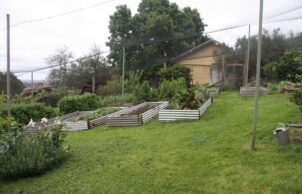

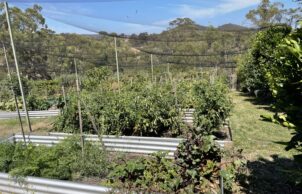

A large, fully netted vegetable garden and orchard now supplies most of our fruit and vegetables and also covers the chook house. The chooks can free range in the orchard. Our goals for sustainability are as much about how we choose to live as improving the sustainability of the house.

Sustainability Features

Years Open
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Deciduous planting around house
      Shading
    • Active heating cooling:
    • Ceiling fans
      Split system airconditioner
    • Water heating:
    • Solar hot water (flat panel)
      Wood fire wetback
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Blackwater system
      Grey water system
      Low flow shower heads
      Drip irrigation
    • Above ground rainwater storage Type:
    • Tanks x 7
    • Above ground rainwater storage Size
    • total storage 68,000 litres, tanks range from 4000 - 12,500 L
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Skylight
      Tubular skylight
    • Window Protection:
    • Awnings (external)
      Blinds
      Deciduous tree/vegetation
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Vents and gaps sealed, draft strips applied to doors, roof insulation upgraded, and wall insulation added during renovations.
    • Recycled and reused materials:
    • Bathroom cabinets
      Benchtops
      Bricks
      Decking
      Paving
      Railway sleepers
      Sleepers
      Timber
      Windows
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R5
    • Floor Type:
    • Reflective foil
    • Under Roof Insulation Type:
    • Reflective foil
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2
    • External Walls Rating:
    • R2
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV grid connect

    • Size of PV system:
    • 4.85 kW
    • Renewable energy
    • Wood-fired heating, cooking and hot water in winter
COSTS AND COST SAVINGS
    • Cost estimate of sustainable home/features:
    • $50,000
    • Estimate of annual savings:
    • $3000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 324 m2
    • BAL Rating
    • No BAL rating requirements at time of construction
    • Roof
    • Metal (Zincalume)
    • Wall Materials
    • Brick veneer
      Mud brick
    • Window and Door Types
    • Casement
      Clerestory windows
      Retrofit Double Glazing
      Skylights
      Sliding windows/doors
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 80cm minimum door opening width
      Hobless showers
      Lever handles for doors (no knobs)
      Shower head on rail for various heights
      Space around toilets for ease of access in wheelchairs
    • Number of bedrooms
    • 5
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Bee keeping
      Bird-nesting boxes
      Chickens
      Composting
      Drip irrigation
      Edible garden
      Frog friendly

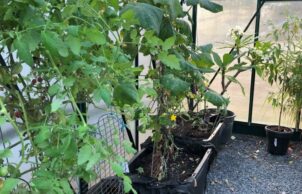

      Greenhouse
      Local indigenous plants
      Orchard
      Organic
      Permaculture
      Native plants
      Water wise plants
      Wicking beds
    • Waste Reduction Practices:
    • Compost all food scraps
      Make jams/conserves
      Pickle and preserve food
      Recycle
      Repair
      Swap with friends and neighbours
HEALTHY HOME FEATURES
    • Healthy home features
    • Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
      Natural light and ventilation
      Natural oil sealer/finishes
Location
St Andrews VIC 3761
    • Housing Type:
    • Standalone House
    • Project Type:
    • Retrofit/addition
