Caringbah House

House Notes – Caringbah House

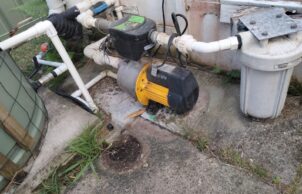

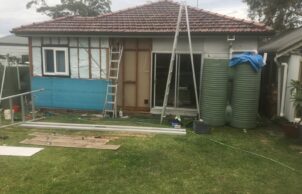

This 1950s fibro four-bedroom house has been retrofitted with 15,000L of rainwater storage and associated guttering, and first-flush systems for reuse in laundry, bathrooms and garden. It has a 4kW solar system in two arrays, plus 2 x Enphase 1.2kW solar batteries. Insulation has been added to walls, ceilings, roof and underfloor, along with UPVC double-glazed windows.

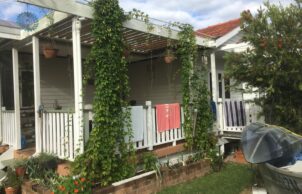

Shading has been improved on the north side of the house to block summer sun, but allow winter sun into the house and living areas. Water use is about 30KL per quarter.

Electricity costs are down to around $260/qt,r with gas about the same – for a five-person family including one young adult and two teenagers! The upgrading of the house is not nearly complete yet, and future projects include a backyard studio and carports with green roofs, and a solid-fuel masonry heater.

Sustainability Features

ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross-ventilation
      Shading
    • Active heating cooling:
    • Ceiling fans
      Split system air conditioner

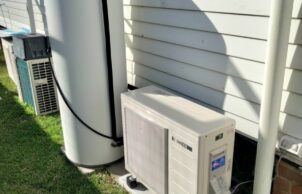

    • Water heating:
    • Gas boiler
    • Water harvesting and saving features:
    • Above-ground rainwater storage
      Underground rainwater storage
      Drip irrigation
    • Underground rainwater storage type:
    • Besser Block water tank
    • Underground rainwater storage Size:
    • 10,000L
    • Above ground rainwater storage Type:
    • 2 x water tanks
    • Above ground rainwater storage Size
    • 5000L
    • Window Protection:
    • Adjustable shading
      Blinds
      Deciduous tree/vegetation
      Drapes/curtains
      Pelmets
      Solar pergola

    • Window Protection:

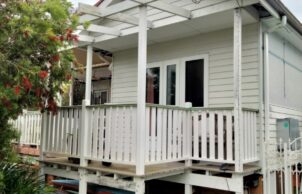

    • Extended gable
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Rooftiles for the gable extension were salvaged from a nearby house when it was demolished, along with some hardwood timber

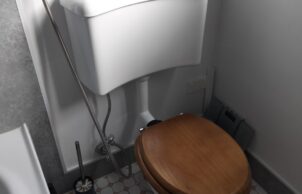

    • Recycled and reused materials:
    • Roofing material
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – cellulose fibre
    • Ceiling Rating:
    • R3.5
    • Floor Type:
    • Bulk – polystyrene board
    • Floor Rating:
    • R1.5

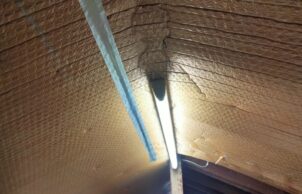

    • Under Roof Insulation Type:
    • Reflective foil
    • Internal Walls Insulation Type:
    • Bulk – cellulose fibre
    • Internal Walls Insulation Rating:
    • R2.0
    • External Walls Rating:
    • R2.5
    • External Walls Type:
    • Bulk – cellulose fibre
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Energy storage/battery
      Solar PV grid-connected
    • Size of PV system:
    • 4kW
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • N/A
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 150m2 approx.
    • Roof
    • Tiles (clay)
    • Wall Materials
    • Lightweight construction (timber frame)
    • Window and Door Types
    • Sliding windows/doors

    • Window and Door Types

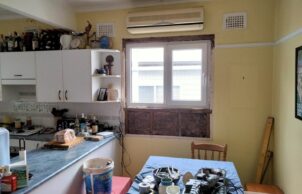

    • UPVC double-glazed tilt-and-turn windows
    • Number of bedrooms
    • 4
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Edible garden
      Native plants
HEALTHY HOME FEATURES
    • Healthy home features
    • Cross-flow ventilation
      Low VOC paints/sealer/varnish
Location
Caringbah NSW 2229
    • Housing Type:
    • Standalone House
    • Project Type:
    • Continual Improvement
