Emerald 2018

Emerald

This home showcases ‘back to basics’ sustainability – good and sensible design that carefully considers all aspects to achieve a balanced outcome that is good for people, planet and pocket.This renovation has been designed for the whole family. Before this was done, our mum could not come to stay; now, she can not only come and stay, but she also has total independence and can move freely around our home by herself.

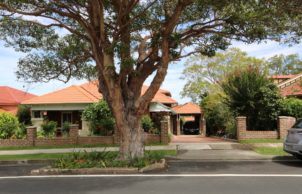

  • Modest single-storey, 1920s Californian bungalow in a heritage conservation area retained, restored and enhanced with renovations; a new addition breathing life into the existing house, and adding charm and character to the house and streetscape

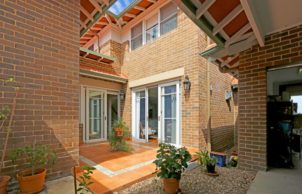

  • Delightful little courtyard (with green walls) and single-storey vestibule separates/connects the old house with the new double-storey section at the rear – functions as the heart and lungs of the house, bringing in bountiful natural warmth, light and cooling breezes into both old and new sections of the home, keeping the occupants healthy and hardly requiring them to use artificial energy
  • Economical to build, as the new structure is kept independent of the old one

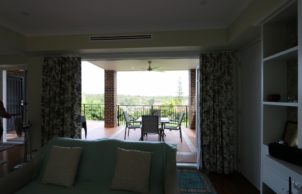

  • Beautiful sunset views enjoyed earlier by occupants maintained, minus the overheating problems and also expanded to other rooms
  • Works with the slope of the land, minimising cut and fill, allowing natural drainage and avoiding issues with being in a problem drainage area
  • Designed for intergenerational living, incorporating principles of Universal Housing.

Designed by Divakarla & Associates and built by Brad Hoad (BH Homes).

Gold coin entry supports Sustainable House Day 2019.

Sustainability Features

Years Open
2018
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Smart home features
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading

    • Passive heating cooling:
    • Optimum orientation, combination compact and spreadout form, zoning between old and new sections of the home
    • Water heating:
    • Solar hot water (flat panel)
    • Water harvesting and saving features:
    • Above ground rainwater storage
      Drip irrigation
    • Above ground rainwater storage Type:
    • metal rain water tank
    • Above ground rainwater storage Size
    • 4000L
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Tubular skylight
    • Window Protection:
    • Drapes/curtains
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Green wall in couryard
    • Recycled and reused materials:
    • Bricks
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under roof
      Ceiling
      External Walls
      Floor
    • Ceiling Type:
    • Bulk - glass wool
    • Ceiling Rating:
    • R3.0
    • Floor Rating:
    • R3.33 to underside of raised timber floor
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R1.0
    • External Walls Rating:
    • R 3.0
    • External Walls Type:
    • Bulk - glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6kW
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $804,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • New enclosed areas 231m2; new unenclosed areas (deck, courtyard and carport) 63m2; plus renovations to existing house including kitchen, foyer, roof, porch and fence
    • BAL Rating
    • N/A
    • Roof
    • Metal (Colorbond)
      Tiles (Concrete)
    • Wall Materials
    • Brick veneer
      Lightweight construction (timber frame)
      Timber
    • Window and Door Types
    • Bi Fold
      Double hung
      Low-e, films
      Sliding windows/doors
      Pocket doors
      Sun Tunnel/SolaTube
    • Universal design accessability
    • Adaptive design
      Disability access
      Multi-generational
      Universal Access
      Wheelchair Access
    • Universal Design Features
    • 80cm minimum door opening width
      Flush thresholds (no lip) to all external doors
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      No stairs/steps
      Ramps and path gradients must be less than 20:1
      Semi recessed basins
      Shower head on rail for various heights
      Slip resistant flooring
      Space around toilets for ease of access in wheelchairs
      Strong fittings like towel rails that can be used as hand rails
      Tapware to be easily accessed from outside the shower
      Window openings easily accessible

    • Universal Design Features
    • Clothes drying area in courtyard for elderly mum and laundry space large enough for mum to move around and be independent.
    • Number of bedrooms
    • 5
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Edible garden
      Green walls
      Native plants
      Water wise plants
HEALTHY HOME FEATURES
    • Healthy home features
    • Cabinet design to minimise dust collection
      Cross flow ventilation
      Low VOC paints/sealer/varnish
      No carpets
Location
Eastwood NSW 2122
    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
    • Builder
    • Brad Hoad (BH Homes)
    • Designer
    • Shaila Divakarla registered architect NSW 9168 (Divakarla and Associates)
