Fig Tree House 2019

Fig Tree House

A 150-year-old Strangler Fig was the inspiration for the interior designer owner to build on this 1200m2 block in Bangalow. The tree is used as a natural shading device in summer, while providing a wonderful sense of privacy and welcome haven for wildlife. Echidnas, possums, snakes and many birds enjoy the large and graceful fig tree and subtropical garden underneath.

Originally designed and built in 2003 as a three-bedroom home, the house comprised two long pavilions with a swimming pool between them. The home was reimagined in 2012 to become two separate two-bedroom homes with NO swimming pool. This was achieved by lifting and reorientating one pavilion and renovating both sections to have north-facing living areas. Only one home is open for inspection on 15th September.

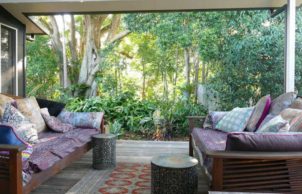

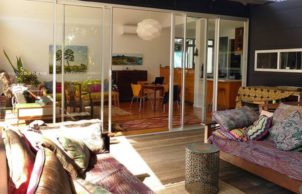

This light and airy home takes advantage of its north-facing deck to capture winter sun and shade in summer which makes for year-round outdoor living. The fig tree effectively blocks summer sun from the west and microclimate under the tree cools the air around the expansive deck.

The purpose for remodelling was to provide a smaller home (lower heating and cooling costs) and a source of income for the owner. The resulting two homes are suitable for strata title to enable the independent sale of either home if desired.

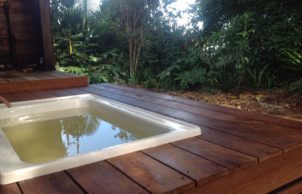

The home features an outdoor shower and Japanese bath, providing views to lush greenery and freedom from the need for tiles, grout and cleaning. A second indoor bathroom uses INEX boards instead of wall tiles to again reduce cleaning.

Gold coin entry. All donations support the Australian Youth Orchestra.

Sustainability Features

Years Open
2018
2019
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
    • Active heating cooling:
    • Ceiling fans
      Split system airconditioner
    • Water heating:
    • Instant gas hot water
    • Water harvesting and saving features:
    • Above ground rainwater storage
      Grey water system
      Low flow shower heads
    • Above ground rainwater storage Type:
    • Water tanks
    • Above ground rainwater storage Size
    • 6,000L
    • Storage connected to
    • Garden
      Toilet
      Laundry
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Tubular skylight
    • Window Protection:
    • Blinds
      Deciduous tree/vegetation
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Hardwood decking reused, other timbers reused for privacy screen between houses. Roofing, windows and other materials used to construct small studio.
    • Sustainable materials:
    • Reuse of windows and doors, decking timbers, roofing material, Inex panels (magnesium, low emission, recycled)
    • Recycled and reused materials:
    • Aggregate
      Basins/sinks
      Concrete
      Doors
      Glass
      Light fixtures
      Paving
      Rocks/stone
      Roofing material
      Timber
      Windows

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – natural wool
    • Ceiling Rating:
    • R2.5
    • Floor Type:
    • Bulk - polystyrene board
    • Floor Rating:
    • R2.5
    • Under Roof Insulation Type:
    • Insulated panels, reflective foil
    • Under Roof Insulation Rating:
    • R2.5 and R1.5
    • Internal Walls Insulation Type:
    • Bulk – polyester
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R2.5
    • External Walls Type:
    • Bulk – polyester
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 3kW
    • Average Daily Energy Consumption:
    • 3.9 kWh
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $400,000
    • Cost estimate of sustainable home/features:
    • $5000
    • Estimate of annual savings:
    • $2000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 122m2 + 40m2 deck
    • BAL Rating
    • BAL – Low: There is insufficient risk to warrant specific construction requirements
    • Roof
    • Insulated panel (sandwich panels)
      Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
    • Window and Door Types
    • Double hung
      Louvre windows
      Sliding windows/doors
      Pocket doors
      Skylights
      Stacking windows/doors
      Sun Tunnel/SolaTube
    • Universal Design Features
    • Hobless showers
      Lever handles for doors (no knobs)
      No Corner cupboards
      Shower head on rail for various heights
    • Number of bedrooms
    • 2
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Edible garden
      Native plants
      Water wise plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
      Swap with friends and neighbours
HEALTHY HOME FEATURES
    • Healthy home features
    • Chemical free cleaning products used
      Cross flow ventilation
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural fibre furnishings
      Natural light and ventilation
      Natural oil sealer/finishes
      No carpets
Location
Bangalow NSW 2479
    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
    • Designer
    • Colourmark Design
