GOODHOUSE40 2024

House Notes – GOODHOUSE40

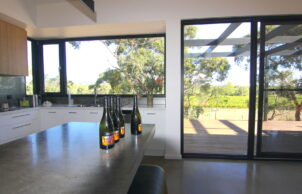

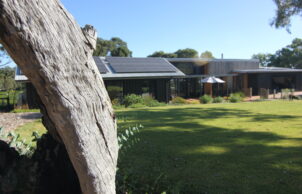

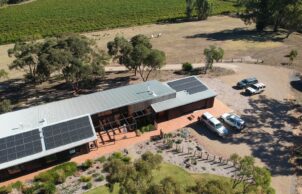

GH40 is quietly tucked into a bush backdrop, overlooking vineyards in McLaren Flat, South Australia.

The siting of this home minimises general site disturbance, whilst maximising the connection to native bush and glorious long views.

The appropriate landscaping uses mainly endemic plant species leaving a blurry line between landscaping and bush. There is a planted out dry creek bed designed for site water management and a small native grass lawned area.

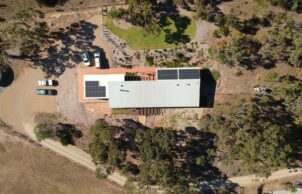

As a semi-rural productive property, the site plan allows abundant space for turnaround, truck access, CFS fire water access and farm parking. This is all out of view when in and around the living areas of the house.

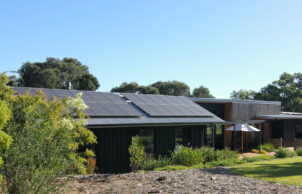

GH40 is off grid. There is a 13.2KW PV array with a 30KwH battery. The house is 100% rainwater, and all wastewater is also dealt with on site.

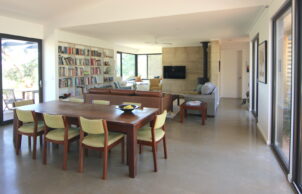

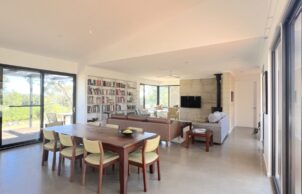

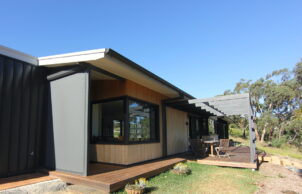

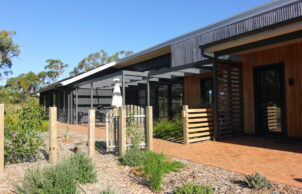

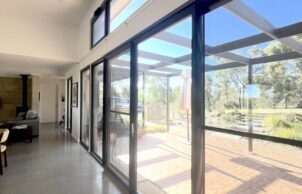

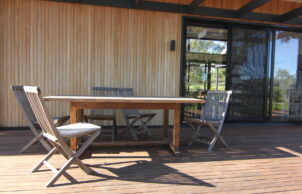

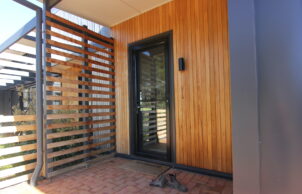

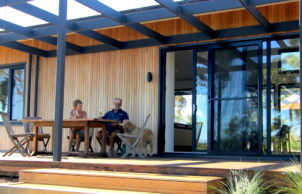

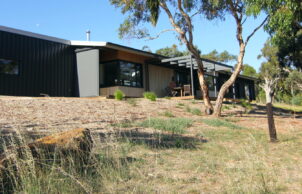

The ingredients are typical GOODHOUSE. Optimal passive solar design, effective natural ventilation, insulated waffle pod slab on ground, highly insulated walls and roof. UPVC double glazed doors and windows with high level venting windows. Concrete floors and rammed earth walls are featured throughout as the thermal mass elements. A mixture of standing seam colorbond and hardwood cladding has been utilised to sit the house into the site. Decking is also hardwood to comply with the BAL29 rating.

Along with the effective passive heating and cooling inherent in the design, the active heating and cooling consists of heat pump hot water, heat pump driven hydronic in slab heating and cooling, and ceiling fans to all rooms.

This house is also designed for aging in place with wider doors and access hallway, spacious wet areas and low threshold external swing doors. This small carbon footprint home is robust and will serve as a thermally comfortable living machine for many years to come.

Sustainability Features

Years Open
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      External planting
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat pump
      Hydronic
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Blackwater system
      Stormwater management
      Low flow shower heads
      Low flow taps
      Drip irrigation
    • Above ground rainwater storage Type:
    • Steel tank
    • Above ground rainwater storage Size
    • 95kL
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Adjustable Shading
      Drapes/curtains
      Eaves

    • Window Protection:
    • Pergola
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6
    • Floor Type:
    • Wafflepod
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R4
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Energy storage/battery
      Solar PV off-grid
    • Size of PV system:
    • 13.2KW PV array with a 30KwH battery
COSTS AND COST SAVINGS
    • Estimate of annual savings:
    • $0 running cost, house is off-grid so no ongoing power or water costs.
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 223m2 (ex. Garage)
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Metal (Colorbond)
      Rammed earth
      Timber
    • Window and Door Types
    • Clerestory windows

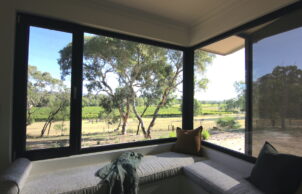

      Double glazing
      Sliding windows/doors
      Tilt and turn
    • Universal design accessability
    • Adaptive design
      Wheelchair accessible
    • Universal Design Features
    • 80cm minimum door opening width
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      No stairs/steps
      Rocker style light switches
      Shower head on rail for various heights
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Local indigenous plants
      Native plants
      Swales
      Water wise plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Make jams/conserves
      Pickle and preserve food
      Recycle
      Repair
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Cross flow ventilation
      Formaldehyde free cabinets
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
Location
McLaren Flat SA 5171
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Watermayne Projects
    • Designer
    • GOODHOUSE Architecture
