House Notes – Goolwa Beach House

I had the desire to design and build our own family home in SA. The land we bought is adjoining the dune reserve at Goolwa beach. The design is a modern Scandinavian style. My favourite architect is Alvar Aalto from Finland.

I have built the home with my son (21 years old). We both took a year off from work to get the house in lock up stage.

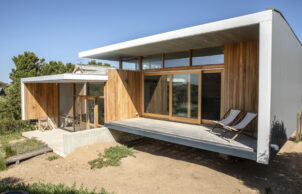

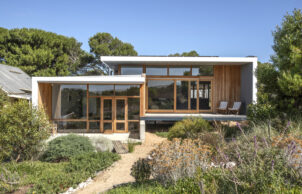

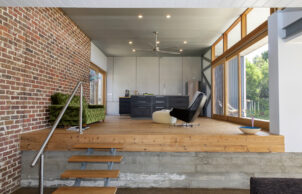

The lay out of the home is in an L-shape and gives the feeling that the gardens are wrapped around the house. The kitchen floor is raised with a meter above natural ground to respond to the sand dune on the site. The elevated floor also provides great vistas over the dune reserve and creates a visual link between the gardens.

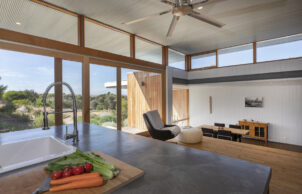

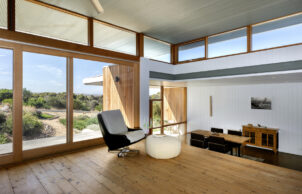

The main living area is facing the dune reserve and the orientation is NNW. The concrete floor (waffle pod) and the insulated cavity brick wall (thermal mass) keeps a comfort climate in the home through passive heating and cooling. Sustainable features like; orientation (north), shade control, cross ventilation, thermal mass, PV panels and batteries, insulation & sealing draughts are all present in the home.

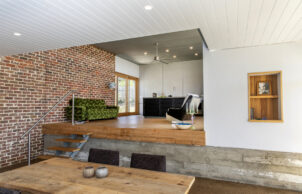

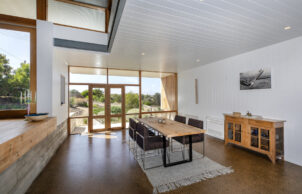

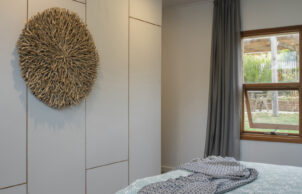

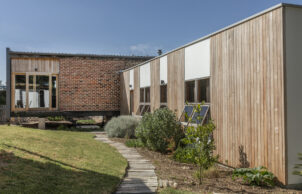

The most prominent materials we have used are; concrete, reclaimed bricks, Australian hardwood, steel, and untreated pine. Some elements in the home have been reused like; bedroom windows, the internal timber cladding and rejected bricks. These items were collected from several salvages. The spacious quality of the main living area allows the northern sun light to enter deep into the home. The living space can be used in different set ups (family home, working from home, etc.)

During construction (owner builder) we took great care in the waste control. We ordered the exact amount of the materials that was needed for the job. We separated landfill waste from the materials that could be recycled like ; gyprock, bricks, timber off- cuts, wrapping plastic etc. By this the total landfill waste was limited to a minimum.

Sustainability Features

Years Open
2023
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring

    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat pump
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
    • Average water consumption per day:
    • 70ltr
    • Above ground rainwater storage Type:
    • Rainwater tank
    • Above ground rainwater storage Size
    • 3000ltr
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Awnings (external)
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Bricks
      Cladding
      Floorboards
      Timber
      Windows
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Internal walls
      Floor
    • Floor Type:
    • Bulk - polystyrene board
    • Floor Rating:
    • R=2
    • Under Roof Insulation Type:
    • Bulk – polystyrene board
    • Under Roof Insulation Rating:
    • R=5
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R=3
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.1
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 7.7KW system with 13KW battery
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • 250,000
    • Cost estimate of sustainable home/features:
    • 25,000
    • Estimate of annual savings:
    • $2400-
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 170
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Insulated panels or blocks
      Lightweight construction (timber frame)
      Reverse Brick veneer
      Timber
    • Window and Door Types
    • Awning
      Clerestory windows
      Double glazing
      Sliding windows/doors
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 80cm minimum door opening width

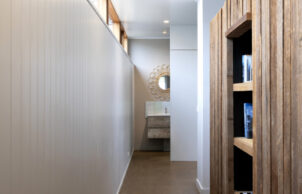

      Minimum 110cm wide hallways
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Cabinet design to minimise dust collection
      Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
      Wax based sealer/finish
Location
Goolwa Beach SA 5214
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • StudioRogier (Owner/builder)
    • Designer
    • StudioRogier
