Harmony House 2023

House Notes – Harmony House

Our project aim was to build a house as energy efficient and affordable as possible. We wanted a house that could heat and cool itself, collect its own energy and water, grow its own food and process its own waste. Along the way we’ve discovered some great solutions to some commonly encountered problems, and would love to share what we’ve learnt in order to help others who are heading off on a similar journey.

One of the first commonly encountered problems of course is achieving a high rating house on an affordable budget. We were stumped for a long time on that one!

We’d done lots of in-depth research on passive solar design principles, so knew what we needed to accomplish. Yet despite exploring every avenue we could think of – from container homes and kit homes to expensive custom builds and everything in between – nothing gave us the performance we were after at the price level we needed.

Everything changed when we discovered the ‘Design for Place’ house plans soon after their release on the YourHome website (an initiative of the Department of Industry, Science, Energy and Resources). Not only did the design look perfect for our family needs, but our technical analysis of the design had us extremely impressed. All the passive solar design elements we’d been after had been incorporated in an outwardly-simple, yet technically clever and effective package: internal thermal mass, crossflow ventilation, correct window to floorspace ratios, to name a few.

Not only had we just saved thousands of dollars in design fees with these freely available plans, but the standard construction materials and building methods factored favourably into our budget. We’d finally found the perfect combination of performance and build price, and enthusiastically charged forward in our project, becoming the first to build the YourHome ‘Design for Place’ design (now known as their ‘Banksia’ design).

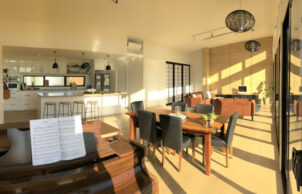

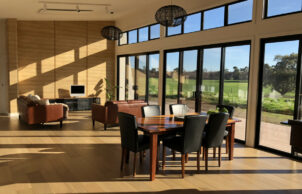

We’re over-joyed with the result, finding our home a beautiful and nurturing place to live, full of sunlight, warmth and fresh air, with a very comfortable stable internal temperature range year round (our back-up heating and cooling systems are rarely used, even in our variable Victorian climate).

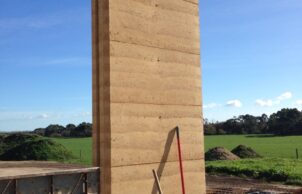

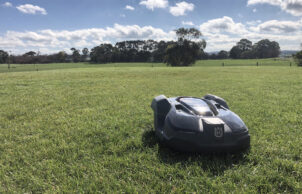

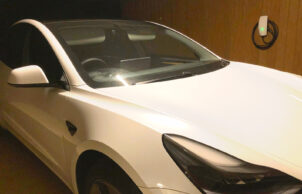

We’d love you to ‘join’ us for the virtual Sustainable House Day 2021 event, where we hope to put together an interesting package sharing some of the solutions we like most about our project, including: the house design, our off-grid energy, our water collection, our thermal heat exchange flooring, our ‘self-cleaning’ cladding, our far-infrared heat panels, our worm farm septic system, our rammed earth living room walls, and our much-loved and much-appreciated automower (“Humphrey”) who takes care of all our lawns and is one of the best project additions we’ve made! This year we’ve also managed to affordably add an electric vehicle to the project which is really exciting, and have found ways to manage the charging regime successfully on our off-grid energy system.

In the meantime feel free to check out the Harmony House case study featured on the YourHome site, or have a look through our own house website for more detailed information on all the features and aspects mentioned above.

This house achieved a NatHERS rating of 8.2 stars using NatHERS accredited software.

Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

Sustainability Features

Years Open
2020
2021
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Thermal mass
    • Active heating cooling:
    • Heat pump
      Split system airconditioner

    • Active heating cooling:
    • Far infra-red heat panels
    • Water heating:
    • Hot water heat pump
      Water heated by PV system
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Worm farm septic tank system
      Low flow shower heads

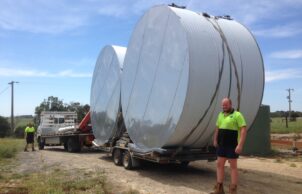

    • Above ground rainwater storage Type:
    • Stainless steel tanks
    • Above ground rainwater storage Size
    • 54,000 litres
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Blinds
      Drapes/curtains
      Eaves
      Pelmets
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Insulated concrete slab Heat exchange floor boards Thermally broken for double glazed windows and sliding doors Thermally broken for partial reverse brick veneer elements Thermally broken for rammed earth elements High R-value cladding
    • Recycled and reused materials:
    • Decking
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Under Roof Insulation Type:
    • Reflective foil
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Energy storage/battery
      Solar PV off-grid
    • Size of PV system:
    • 14kW
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 194 m2
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Wall Materials
    • Lightweight construction (timber frame)
      Rammed earth
      Reverse Brick veneer
    • Window and Door Types
    • Awning
      Double glazing
      Sliding windows/doors
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Edible garden
      Frog friendly
      Worm farm
    • Waste Reduction Practices:
    • Book exchange/library
      Compost all food scraps
      Pickle and preserve food
      Recycle
      Repair
      Take own containers to the supermarket and for take away food
HEALTHY HOME FEATURES
    • Healthy home features
    • Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
Location
Inverloch VIC 3996
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Designer
    • 'Design for Place' YourHome
