Hazeldene No.2 2020

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Manning WA 6152
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Open with support of
    • Solar Dwellings
    • Builder
    • NuLook
    • Designer
    • Solar Dwellings

About Hazeldene No.2

Incorporating solar passive design principles in this traditional two storey home was inspired by the owners love of the environment and passion for sustainable living. The residence achieves a comfortable living atmosphere that minimises the homes energy/water resources and carbon footprint.

In order to build a greener, cleaner more efficient home GreenSmart build principles were adopted and all construction waste was limited through strict monitoring by the supervisor. Recycling cages for timber, rubble and general waste were managed on site and properly disposed of by the Nulook Homes truck at the appropriate recycling and waste disposal facilities. Brick rubble was disposed of at Capital Recycling and crushed down for sale as road base. Timbers were taken to EMRC and shredded for mulch and animal bedding and Austral Bricks provide bags for brick ties. These are picked up on call at the end of the brickwork stage and are recycled to be used to pack other brick pallets.

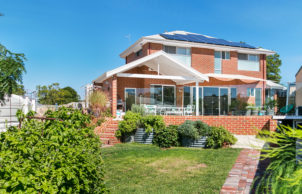

During the design phase the full extent of the location, vegetation, seasons, sun, wind and climate were taken into consideration. The home is orientated so that the main living areas are facing north to maximise natural light in summer and winter, along with airflow and natural heating and cooling.

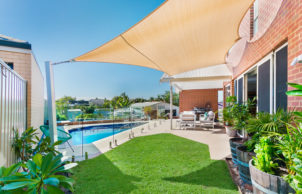

Shade sails have been installed to the alfresco area which are erected in summer to protect the living areas from Perth’s hot summer sun. These are removed and stored during the winter months to allow the sun to flood through the home and heat the house using thermal passive principles. The home has also been fitted with insulated roller shutters to both the East and West side of the home to aid in keeping the heat out in the summer months.

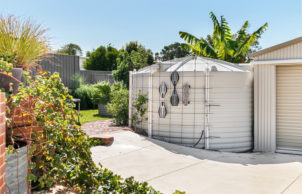

Planting zones where created around the property and plants were specifically located based on their tolerances and the sun cycle. A tropical zone was created along the shed line as the heat reflects off the shed creating the perfect climate for bananas, mangos, avocados and other tropical species. The herb garden was planted alongside the garden ramp for accessibility and close proximity to the kitchen. The owners have also grown a variety of citrus trees around the rainwater tank and trained them to develop in the espalier pattern. This was chosen for decorative purposes but also in order to increase the trees fruit production. At the rear of the property a gleditsia tree has been planted for its seasonal benefits, in the summer it produces leaves to shelter the seasonal vegetable garden beneath from the harsh sun and in winter it sheds its leave to allow the sunlight through.

The owners, designers (Solar Dwellings) and builder (Nulook Homes), are extremely proud of this project and how it showcases the benefits of Green Smart construction today and sustainable living. This home has been designed and built to demonstrate functionality, liveability and sustainability in a traditional design that compliments the community its surrounding suburb.

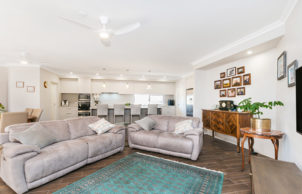

The owners love the fact they can enjoy sitting in the beautiful warm sunshine on a cold winters day while also feeling the natural warmth as you walk into the living room in the evening. They are proud to say ‘we did this’!

View Featured Video

SUSTAINABLE FEATURES

Years Open
2019
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring

    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass

    • Passive heating cooling:
    • Roof venting installed to manage air flow and retain an ambient temperature in the roof space
    • Active heating cooling:
    • Ceiling fans
    • Water heating:

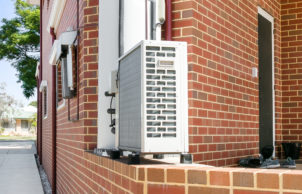

    • Hot water heat pump
    • Water harvesting and saving features:
    • Grey water system

    • Water harvesting and saving
    • To also aid in groundwater replenishment the homes physical footprint is 30% of the overall land size, this was kept to a minimum in order to maximise the capture of storm water and groundwater replenishment as well as utilising the back garden for planting purposes and nature play principles.
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Adjustable Shading
      Automation/controls
      Deciduous tree/vegetation
      Drapes/curtains
      Pelmets
      Shade Sails

    • Window Protection:
    • Roller shutters keep heat in during the winter.
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:

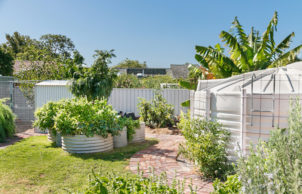

    • Recycled and repurposed their old water tanks to create raised vegetable gardens, old wine barrels have been used to grow blue berries .
    • Recycled and reused materials:
    • Bricks

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls

    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R4.0
    • Other Insulation Methods:
    • Fully insulated garage door
    • Under Roof Insulation Type:
    • 60mm Anticon (fibreglass blanket with bonded double sided foil)
    • Under Roof Insulation Rating:
    • R1.3
    • External Walls Rating:
    • Heat flow in R1.8, heat flow out R2.0
    • External Walls Type:
    • Kingspan Air-Cell Permicav
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Energy star rating:
    • 8.8 Stars
    • Renewable energy used:
    • Solar PV grid connect

    • Size of PV system:
    • 23.6.5kw REC panels with Fronius 3 phase 5kW inverter
    • Renewable energy
    • Fronius consumption meter to track and manage solar production
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $456,000
    • Cost estimate of sustainable home/features:
    • $25,000
    • Estimate of annual savings:
    • $3500
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 235m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Double brick

    • Wall Materials
    • The bricks selected as they are made in WA and save on cartage carbon emissions.
    • Window and Door Types
    • Awning
      Low-e, films
      Sliding windows/doors
    • Universal design accessability
    • Adaptive design
      Multi-generational
      Universal access
    • Universal Design Features
    • 80cm minimum door opening width
      Flush thresholds (no lip) to all external doors
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      Power points at 60cm above floor level and 50cm from internal corners
      Semi recessed basins
      Slip resistant flooring
      Tapware to be easily accessed from outside the shower

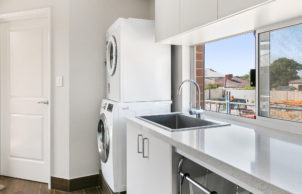

      Washing machine/dryer on plynth for easy access
      Window openings easily accessible

    • Universal Design Features
    • Stud wall in toilet designed to be removed for future wheelchair access stairs designed to suit future stair lift.
    • Number of bedrooms
    • 5
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Chickens
      Composting
      Drip irrigation
      Edible garden
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
      Swap with friends and neighbours
HEALTHY HOME FEATURES
    • Healthy home features
    • Cross flow ventilation
      Natural light and ventilation
