Hillside House 2020

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Croydon North VIC 3136
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Positive Footprints Pty Ltd
    • Designer
    • Positive Footprints Pty Ltd

About Hillside House

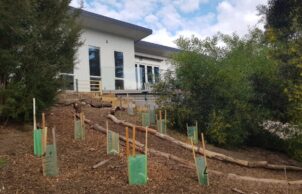

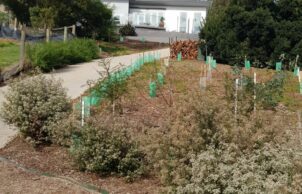

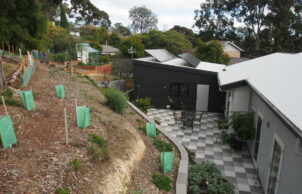

In 2016, John and Trudy wanted to build a home that will allow their grown-up children and one elderly parent to come and stay at length. They have a lovely, but steep block in Croydon which faces north and has vegetation overlay and a specific building envelope that is about 60m from the street.

Being energy efficient, having universal access feature within the house and capturing the view to the north and their front yard (which the owners planned to plant hundreds of indigenous plants), was the key requirement of the brief. The outcome is a 8.1 star all-electric house on raft concrete slab that is cut and filled, 18,000L water tank, 4.8kW PV system with battery storage, clerestory roof form which brings solar access to all habitable rooms in the house.

Watch ‘Towards Zero Emissions’ video from the builder here

This house achieved a NatHERS rating of 8.1 stars using NatHERS accredited software.

Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

View Featured Video

SUSTAINABLE FEATURES

Years Open
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Grey water system
      Drip irrigation
    • Average water consumption per day:
    • 132L per person
    • Above ground rainwater storage Type:
    • water tank
    • Above ground rainwater storage Size
    • 18,000L
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Solar skylight
    • Window Protection:
    • Automation/controls
      Awnings (external)
      Blinds
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Soil to be kept on site Low embodied energy cladding Double glazed composite windows
    • Recycled and reused materials:
    • Aggregate
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R5.0
    • Floor Type:
    • Wafflepod
    • Floor Rating:
    • R0.7
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R1.8
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2.0
    • External Walls Rating:
    • R2.7
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 8.1
    • Renewable energy used:
    • Energy storage/battery
      Solar PV grid connect
    • Size of PV system:
    • 4.8kW
    • Average Daily Energy Consumption:
    • 2018/19/20 8Q 0.6kWh per person from grid
COSTS AND COST SAVINGS
    • Cost estimate of sustainable home/features:
    • $30,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 225m2
    • BAL Rating
    • BAL – Low: There is insufficient risk to warrant specific construction requirements
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Metal (Colorbond)
    • Window and Door Types
    • Bi Fold
      Casement
      Clerestory windows
      Double glazing
      Skylights
      Stacking windows/doors
      Sun Tunnel/SolaTube
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 80cm minimum door opening width
      Flush thresholds (no lip) to all external doors
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Edible garden
      Greenhouse
      Local indigenous plants
      Orchard
      Organic
      Native plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
      Formaldehyde free cabinets
      Low VOC paints/sealer/varnish
      Natural light and ventilation
