Honeysuckle House 2023

House Notes – Honeysuckle House

This was the second build for a young family looking to downsize and create a smaller home with maximum flexibility in use. The goal was to keep things as cost-efficient to build as possible while prescribing to solar passive and healthy home principles, optimising the thermal performance, and minimising energy consumption. The secret weapon was to generate income from the house by incorporating a low-maintenance self-contained bed and breakfast.

In response to the brief a simple yet bold, linear barn was designed to be relatively easy to build. The barn hugs the length of the southern boundary to maximise north solar access whilst a detached garage and laundry have been rotated 7 degrees to create dynamic circulation and multiple outdoor rooms.
To the front of the site is a semi-attached open-plan short stay studio with a private courtyard and entrance allowing for good separation between guests and the family. To the rear of the barn is a compact 3×1 with a footprint of 150m2.

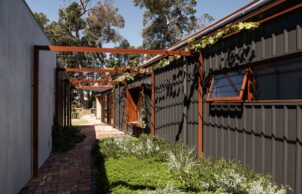

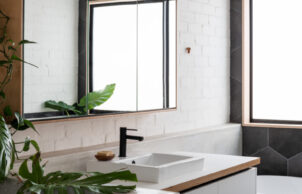

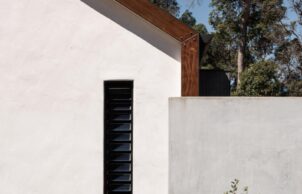

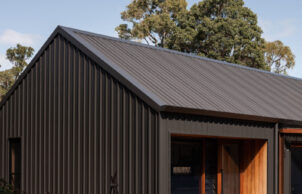

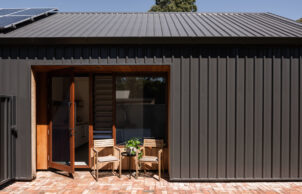

An external ‘shell’ of robust Colorbond cladding is complemented by feature shiplap Pacific Teak and double-glazed cedar fenestrations. In contrast, the hygge interiors of the home embrace warm timbers, zero VOC clay paints, and tumbled face brick walls. Breathable lime-washed hemp walls feature in most rooms. Several innovative construction techniques were employed to increase the performance and health of the home including the use of hemp walls, earthed slab reinforcement, and allowing for natural ventilation of the building’s entire structure.

Sustainability Features

Years Open
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances

    • Energy efficiency:
    • Kill switches
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat pump
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Drip irrigation
    • Energy Efficient Lighting
    • Natural daylight
    • Window Protection:
    • Blinds
      Deciduous tree/vegetation
      Eaves
      External window hoods/surrounds
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:

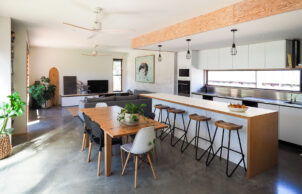

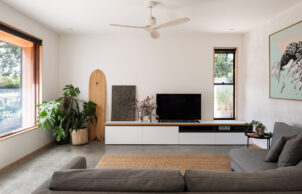

    • The house is primarily light-weight timber framed construction with feature hemp and masonry walls, clad in metal. One of our favourite parts of the building is invariably the hemp walls which are fireproof, non-toxic, sustainable, breathable, and highly insulative. Wherever possible we have used zero / low VOC, non-toxic or natural, renewable or recyclable products and methods of construction. The thermal mass of the concrete floors and masonry walls stores energy to help passively heat and cool the home so no air-conditioning is required. The narrow span of the building allows for cross ventilation and ceiling fans in all rooms assist with further heat distribution. Strategic placement of high levels of insulation and pockets of air in the wall and roof structure optimise thermal performance. Allowances have been made for ventilation paths between the metal cladding and timber framing to help minimise the detrimental effects of condensation.
    • Recycled and reused materials:
    • Bricks
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
    • Ceiling Type:
    • Bulk – polyester
    • Ceiling Rating:
    • R4.0
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R1.3
    • Internal Walls Insulation Type:
    • Bulk – polyester
    • Internal Walls Insulation Rating:
    • R2.5 HD
    • External Walls Rating:
    • R2.5 HD
    • External Walls Type:
    • Bulk – polyester
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 9
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6.48kw
    • Average Daily Energy Consumption:
    • 3.5 kWh
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $480,000 in 2017
    • Cost estimate of sustainable home/features:
    • $25,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 201
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Hemp
      Lightweight construction (timber frame)
      Timber
    • Window and Door Types
    • Awning
      Double glazing
      Sliding windows/doors
    • Universal design accessability
    • Adaptive design
      Multi-generational
    • Number of bedrooms
    • 4
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Edible garden
      Local indigenous plants
      Permaculture
      Native plants
      Water wise plants
      Worm farm
    • Waste Reduction Practices:
    • Compost all food scraps
      Pickle and preserve food
      Recycle
      Repair
      Take own containers to the supermarket and for take away food
HEALTHY HOME FEATURES
    • Healthy home features
    • Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Indoor plants for air filtration
      Lime render/wash
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
Location
Cowaramup WA 6284
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Black Point Construction
    • Designer
    • Lurie Concepts
