❤️ Integrated tiny home: smart, robust sustainable and artistic tiny home ❤️

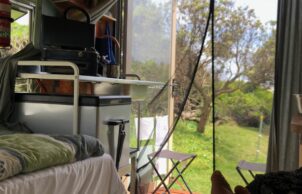

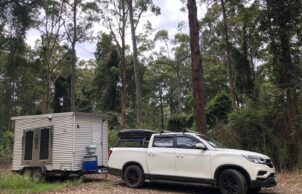

This is a beach inspired tiny house with excellent cross ventilation provided by two doors, bathroom window and awning solar wall. Double glass door opens onto the deck and creates an extra glass room.

The house is built solidly with quality materials:

– Galvanised welded frame;
– MgO magnesium oxide board with artistic Italian Venetian plaster finish;
– Marine and birch ply;
– European wood ceilings;
– Colorbond cladding and roof.

All materials are water resistant. The house was tested for flood in the major Lismore floods in 2022, and came out with no flood damage at all.

All water from the roof is collected into the 220 L water tank. Additional water tanks can be added anytime. The house is well insulated and fully flyscreened. The large glass door is a toughen glass bushfire grade door. The second door is a fire resistant metal door.

Other smart features include:

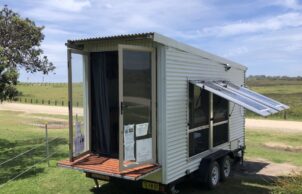

– One wall opens like awning providing desirable angle for solar panels, access to underfloor storage and also good shade;

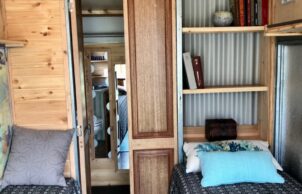

– Double floor with ample underfloor storage including storage for long items like surfboards, fishing tackle, climbing and adventure gear etc
– The patented house structure assures correct weight distribution and excellent stability on the road.
(Patent # 2020100273)

– Off/on grid plumbing options;
– Water filter;
– Patented Zero waste system with flushing marine toilet.
(Patent # 2020102326)
– 75L internal water tank is getting refilled from rainwater tank
– 50L grey water tank
– Indoor and outdoor showers
– Indoor and outdoor taps
– Laundry stainless sink

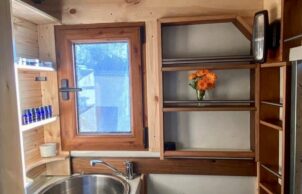

– Stainless steel kitchen sink, bench top and aluminum alloy lightweight pantry
– Wooden shelves with lockable rail used during transit
– Slide out fridge
– Slide out IKEA buckets
– Heavy duty hooks for hammocks or additional storage to hang pots etc

Sustainability Features

Years Open
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances
      Energy monitoring
      Smart home features
    • Passive heating cooling:
    • Cross ventilation

    • Passive heating cooling:
    • Smart solar wall opens to make awnings
    • Water heating:
    • Instant gas
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Blackwater system
      Compost toilet
      Grey water system
      Worm farm septic tank system
    • Average water consumption per day:
    • 20-50L
    • Above ground rainwater storage Type:
    • Water tank
    • Above ground rainwater storage Size
    • 220L can be doubled or tripled if needed
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Awnings (external)
      Drapes/curtains
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Recycled wood and left overs from building of our family house
    • Recycled and reused materials:
    • Basins/sinks
      Doors
      Glass
      Timber
      Windows
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      External walls
      Floor
    • Floor Type:
    • Commercial grade rubbery under the floor
    • Floor Rating:
    • Not sure but it works well
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • R3 walls and R5 under the roof
    • External Walls Type:
    • Reflective insulation
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV off-grid
    • Size of PV system:
    • 0.7 KW
    • Average Daily Energy Consumption:
    • Close to zero
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $75000 includes build in 2019 and renovation in 2023
    • Cost estimate of sustainable home/features:
    • $120000
    • Estimate of annual savings:
    • No bills, zero waste, freedom of travel
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 4.5 m x 2 m or 9m2
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Metal (Colorbond)
    • Window and Door Types
    • Casement
      Double glazing

    • Window and Door Types
    • Toughen glass bushfire resistant
    • Universal design accessability
    • Adaptive design
      Multi-generational
      Universal access
    • Universal Design Features
    • Contrasting colours and material for vision impaired
      Flush thresholds (no lip) to all external doors
      No Corner cupboards
    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Worm farm
    • Waste Reduction Practices:
    • Compost all food scraps
      Plastic free household
      Recycle
      Repair
      Recycle coffee grounds from nearby cafe's
      Take own containers to the supermarket and for take away food
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Cabinet design to minimise dust collection
      Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Formaldehyde free cabinets
      Lime render/wash
      Natural light and ventilation
      VOC free paints/sealer/varnish
      Wax based sealer/finish

    • Healthy Home
    • Venetian plaster on MgO walls with beeswax finish and lime wash
Location
Hazelbrook NSW 2779
    • Housing Type:
    • Tiny Home - Transportable
    • Project Type:
    • New Build
    • Builder
    • Owner builder
    • Designer
    • We designed and patented this house
