Lake Tahune Hut 2024

House Notes – Lake Tahune Hut

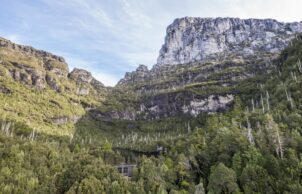

Lake Tahune in the Franklin-Gordon Wild Rivers National Park is one of the most spectacular locations one could wish to spend a night.

A new unserviced hut was required to safely accommodate bushwalkers below the summit of Frenchmans Cap. The Frenchmans Cap track is a popular four day walk in the Franklin-Gordon Wild Rivers National Park, in Tasmania’s magnificent South West Wilderness World Heritage Area.

The complex brief incorporated:
– protection from wild weather and bushfire,
– minimal impact on the sensitive local landscape,
– a robust interior to endure high levels of public use,
– a healthy indoor climate,
– prevention of condensation,
– and longevity/low maintenance.

The hut was conceptualised with emphasis on sustainability and simplicity.
It was completed in 2018.

SUSTAINABLE DESIGN
Lake Tahune Hut is built on the footprint of the previous poorly insulated and mould-affected hut, which could no longer accommodate the growing number of visitors seeking shelter here.

The new hut sets a new benchmark in sustainable design. The climate zone 8 site, with frequent snow falls, demanded an unusually high level of insulation (R6-R8), with triple glazed argon filled windows, and special attention paid to the avoidance of cold bridges in the building envelope.

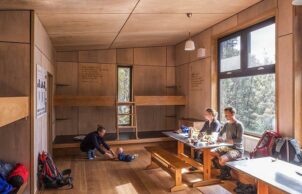

High internal heat gains combine with passive solar gains (large north-facing windows) to cover most of the hut’s heating requirements. The energy consultants of RED Sustainability provided energy modelling during the design phase. In the coldest periods the hut is heated by a 0.7kW heater running off micro hydro power from a nearby creek. The dump load from the generator provides a drying facility in the porch.

Condensation is prevented by the permeability of the external building fabric and two small heat exchangers, which supply fresh air and retain internal temperatures, while removing humidity.

In order to minimise impact on the site, the footprint is minimised, while still accommodating up to 26 bushwalkers comfortably in two rooms on 60m². The compact floor plan enables the most efficient use of materials and reduces heat loss.
A system of filters including a bottomless sand filter cleans the greywater before it is returned to the sensitive karst landscape.

EXPERIENCE
In the harsh South-western Tasmanian Climate, a mountain hut needs to not only provide physical refuge, but also an emotional sense of warmth and protection.

At the end of an immersive, physically demanding and visually stunning bushwalk, the hut provides a sense of luxury on arrival. However, while remarkably efficient and comfortable, the hut is visually subservient to its surroundings and has only basic facilities to support the walking experience, which include a water tank, a sink, dry toilets (the local landscape is too sensitive to treat waste water on site), LED lights, steel cooking benches (bushwalkers bring their own cooking gear), seats, tables, bunks, a porch for wet gear and decks for outdoor cooking and camping.

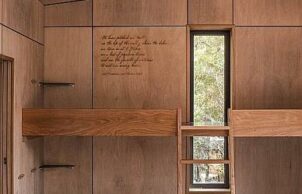

The limewashed timber interior holds a modern interpretation of a traditional Tasmanian bush hut and, together with the quotes engraved in some panels, give the space a playful and poetic note, which enhances the sense of place.

CONSTRUCTION
In a bid to reduce carbon miles, local materials where employed as much as possible, including all structural timber and interior finishes being Tasmanian hardwood. Lightweight timber construction was used to minimise embodied energy and the number of required helicopter lifts.

The exterior timber is mainland Blackbutt, as no Tasmanian timber is suitable for the high bushfire attack level (BAL29). The rock walls and some interior elements are recycled from the previous hut.

The construction crew (Valley Workshop) had only a narrow window of summer weather, with some of the most challenging alpine conditions, at 1000m above sea level and a two day hike to the nearest road. Hyper-insulated timber eSIPs, designed by Warren French, were prefabricated in the workshop in northern Tasmania, trucked to the South West World Heritage Area and heli-lifted into position on site. Apart from speedy construction, this enabled zero wastage in the National Park and ensured protection of the myrtle trees closely surrounding the building footprint. At the end of its service life, the hut can be disassembled, and materials/elements can be reused or recycled.

Sustainability Features

Years Open
2020
2021
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
    • Passive heating cooling:
    • Cross ventilation
      Heat recovery ventilation system
      Passive solar designed home
      Shading
    • Active heating cooling:
    • Heat exchange ventilation system

    • Active heating cooling:
    • ceiling heating
    • Water heating:
    • no hot water on the site
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Grey water system
      Stormwater management
      Low flow taps
    • Average water consumption per day:
    • 2l
    • Above ground rainwater storage Type:
    • tank
    • Above ground rainwater storage Size
    • 15000l
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Eaves

    • Window Protection:
    • ember screens
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • - re-used local stone - sustainable plywood
    • Recycled and reused materials:
    • Rocks/stone
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor

    • Ceiling Type:
    • Bulk – glass wool
    • Floor Type:
    • Bulk - glass wool
    • Floor Rating:
    • 5
    • Other Insulation Methods:
    • elimination of structural bridges
    • Under Roof Insulation Type:
    • Insulated panels
    • Under Roof Insulation Rating:
    • 8
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • 2.7
    • External Walls Rating:
    • 5.4
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Micro-hydro
    • Average Daily Energy Consumption:
    • 0.2kWh
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 64m²
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Structural insulated panels (SIP's)
      Timber

    • Wall Materials
    • cement sheet cladding (ventilated)
    • Window and Door Types
    • Awning
      Low-e, films
      Tilt and turn
      Triple glazing
    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • minimal impact on natural environment
    • Garden / Outdoors
    • Native plants

    • Waste Reduction Practices:
    • Waste free/reduced construction site

    • Other Waste Reduction Practices:
    • All bushwalkers carry out their waste.
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Automated ventilation system
      Cabinet design to minimise dust collection
      Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Formaldehyde free cabinets
      Heat recovery ventilation (HRV)
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
      VOC free paints/sealer/varnish
      Wax based sealer/finish
Location
Franklin Gordon Wild Rivers National Park TAS 7139
    • Housing Type:
    • mountain hut
    • Project Type:
    • New Build
    • Open with support of
    • Renew Tasmania South Branch
    • Builder
    • Valley Workshop
    • Designer
    • Green Design Architects (www.greendesign.net.au)
