Lekofly 2018

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Mulgrave VIC 3170
    • Housing Type:
    • Display Home
    • Project Type:
    • New Build
    • Open with support of
    • City of Monash
    • Builder
    • iBuild Building Solution
    • Designer
    • iBuild Building Solution

About Lekofly

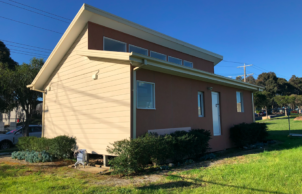

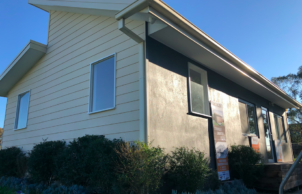

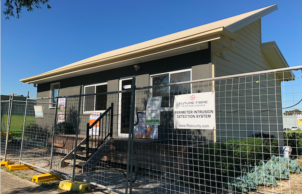

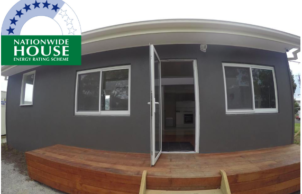

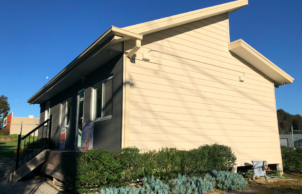

Lekofly is at iBuilds Melbourne display centre and demonstrates an innovative integrated approach combining TransPack / Lekofly modular components and site-built elements, creating the finished modern stylish building with seamless integration between modular build and traditional sticky build. The Lekofly display home is fire rated, termite resistant, and equipped with state-of-art optical fiber perimeter protection system.

Our Lekofly display centre is awarded Nationwide House Energy Rating Scheme (NatHERS) 7-Star Energy Rating. On average, our modular homes consume 28% less energy than 6-star rated buildings. This would help save consumers hundreds of dollars a year in household energy costs.

Moreover, iBuild has a unique flatpack transportation model. Each kit and modular home has a stackable design, which could optimize loads and reduce transportation emission.

Prefabrication allows our project to be completed quicker than traditional construction, saving cost and time. This technique also significantly reduces onsite disruptions, such as vehicular traffic on roadside, noise and dust pollution to surrounding residents.

Wherever possible, iBuild’s products use recyclable and sustainable materials, such as LOSP H2 treated and H3 structural treated pinewood, which is environmentally sustainable and versatile for use, and 100% natural Australian made timber cladding, which is termite resistant, fire-rated, zero carbon footprint and has 25-years warranty. Furthermore, iBuild’s modular buildings can be relocated and reused at the end of their lifecycle to achieve sustainability.

Designed and built by iBuild

This house achieved 7.0 Stars using FirstRate5 software, to find out more about the NatHERS (Nationwide House Energy Rating Scheme) click here

SUSTAINABLE FEATURES

Years Open
2018
ENERGY AND WATER EFFICIENT FEATURES
    • Passive heating cooling:
    • Shading
    • Water harvesting and saving features:
    • Above ground rainwater storage
    • Above ground rainwater storage Type:
    • Watertank
    • Above ground rainwater storage Size
    • 500L
    • Energy Efficient Lighting
    • Natural daylight
      Skylight
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:

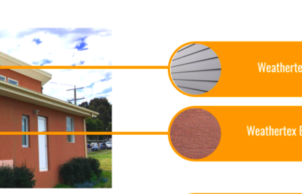

    • 1. Termite-Resistant Timber: iBuild's homes are made using LOSP H2 treated and H3 structural treated pine wood, which is environmentally sustainable and used as structural materials. 2. Strongest Softwood: The LOSP H3 beams used for building structure are environmentally sustainable and versatile for use. 3. 100% Natural Australian Made TImber Cladding: iBuild recommends Weathertex cladding, which is 100% Australian made, for the exterior cladding of the homes. It is termite resistant, fire-rated, zero carbon footprint, and 25-year warranty.
    • Recycled and reused materials:
    • Appliances
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
      External Walls
      Floor
    • Ceiling Type:
    • Bulk - glass wool
    • Ceiling Rating:
    • R3.5
    • Floor Type:
    • Bulk - glass wool
    • Floor Rating:
    • R2.0 (bedroom), R2.5 (bathroom, kitchen Living)
    • Internal Walls Insulation Type:
    • Bulk - glass wool
    • Internal Walls Insulation Rating:
    • R3.0
    • External Walls Rating:
    • R1.5
    • External Walls Type:
    • Bulk - glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7-Star Rating
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $99,000
    • Cost estimate of sustainable home/features:
    • Innovation leads to a lower cost than the cost of the equivalent standard home.
    • Estimate of annual savings:
    • $2000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 56m2
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials

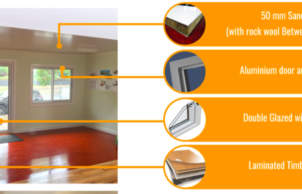

    • Insulated panels or blocks
    • Window and Door Types
    • Double glazing
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • Kitchen bench/table for wheelchairs to access (75-85cm high)
      Minimum 110cm wide hallways
      Power points at 60cm above floor level and 50cm from internal corners
      Window openings easily accessible
    • Number of bedrooms
    • 2
    • Number of bathrooms
    • 1
HEALTHY HOME FEATURES
    • Healthy home features
    • Natural light and ventilation
