Milton’s Divine Eco Home 2017

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Milton NSW 2538
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Green Draft Pty Ltd

About Milton’s Divine Eco Home

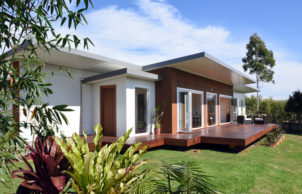

Designed around solar passive, sustainable, energy efficient and forever functional principles, Green Draft’s newest home has created healthy and comfortable year round living conditions without the need for any mechanical heating or cooling.
Constructed of Australian made and pre-cut structural insulated panels – walls and roof – the home has achieved above average insulation values with minimal waste on site and large eaves to protect from the summer sun. Built on bearers and joists the natural lie of the land has been untouched allowing the home to breathe and giving access to trades and services. This area also houses a 10,000L water tank to allow access to clean rainwater and save money on water costs.

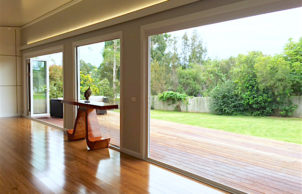

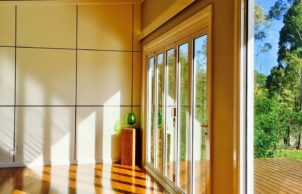

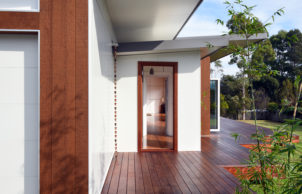

Double glazed windows and doors have been used throughout creating a safe, quiet, energy efficient, comfortable and healthy home while allowing effective cross ventilation and an abundance of natural light. With wider doors and hallways to accommodate life at every stage, and perfectly level from the driveway through the home, it is safe and accessible for every age and ability.

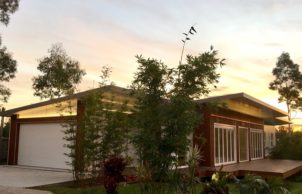

Below zero carbon and platinum certified building materials have been used, along with recycled glass, LED lighting and environmentally friendly materials. Planting has included non-invasive bamboo which helps reduce carbon dioxide gases and generates up to 35% more oxygen than an equivalent stand of trees. It also lowers light intensity and protects against ultra violet rays.

Welcome to ‘Elysian’… Join us on Sustainable House Day and talk to the designer and the builder.
Elysian : Beautifully Creative; Divinely Inspired; Perfectly Peaceful..

This divine new home is for sale. www.ownthis.com.au
For more information on GreenDraft click here

SUSTAINABLE FEATURES

Years Open
2017
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Draught proofing
      Efficient appliances
      Smart home features
    • Passive heating cooling:
    • Shading
      Cross ventilation

    • Passive heating cooling:
    • 1.9 m eaves, solar passive design, double glazing
    • Active heating cooling:
    • Solar passive design, cross ventilation, large 1.9m eaves, double glazing
    • Water heating:
    • Gas 7 Star with Energy Recovery System
    • Water harvesting and saving features:
    • Above ground storage
      Greywater system
      Low flow shower heads
      Low flow taps
      Storage connected to
    • Above ground rainwater storage Type:
    • Water tank under the house
    • Above ground rainwater storage Size
    • 10,000L
    • Storage connected to
    • Garden
      Toilet
      Laundry
      Whole house
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • SIPs, Weathertex, Glass, Bamboo flooring and planting, Double glazing, LED lights, Water tank,
    • Recycled and reused materials:
    • Paving
      Insulation
      Glass
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal and external walls
      Floor
    • Ceiling Type:
    • 150mm SIP's
    • Ceiling Rating:
    • R Value 5
    • Floor Type:
    • Uni pier sub floor with solid bamboo flooring and extra insulation
    • Internal / External Walls Type:
    • 150mm SIP's external, 100mm SIP's internal
    • Internal / External Walls Rating:
    • External Walls - R Value of 5
COSTS AND COST SAVINGS
    • Estimate of annual savings:
    • Energy, water and health savings
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 180m2
    • Window and Door Types
    • Double glazing
    • Universal Design Features
    • Disability access
      Multi-generational
      Adaptive design
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Drip irrigation
      Water wise plants
HEALTHY HOME FEATURES
    • Healthy home features
    • SIPs, Weathertex, Glass, Bamboo flooring and planting, Double glazing, LED lights, Non toxic paints,
