Mount Hawthorn Sustainable House

We have a strong desire to live sustainably in many ways and it had been our dream for years to build and live in an energy efficient home. We had already found a block which was north-facing and close to a train station. We lived in the existing 1950’s home for a few years before we teamed up with architect Sid Thoo to design a new home to build on the block. Apart from building a house that would require little energy to run, we wanted a modern and comfortable, though not overly large, family home that could be built within the normal budget for house construction.

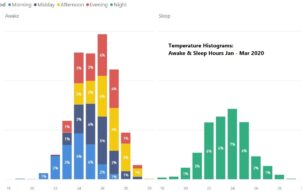

During the first year of living in our solar passive house we have established that we could live without any air conditioning or space heating and our energy use can be very low. Our total energy use is less than half what it used to be, and more than half of that is sourced from our solar panels. Our home has been lovely to live in and we couldn’t be happier.

House Features:

• NatHERS 8.2 Star Rating
• Solar passive heating & cooling achieved through careful design of orientation, window area, eaves/shading, breezes and internal thermal mass
• Colorbond ‘Whitehaven’ low absorptance roof

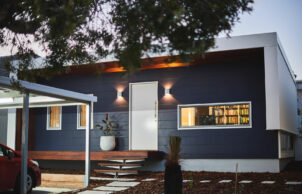

• Low embodied energy timber-framed construction and Weathertex Ecogroove exterior cladding
• R2.5 insulation in walls and R4.0 insulation in ceiling
• Low absorptance paint colours on north, east and western walls

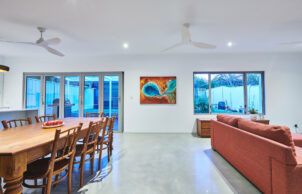

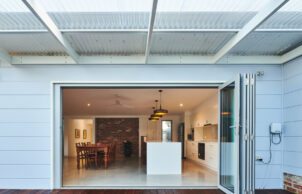

• North-facing living areas with eaves designed to exclude summer but permit winter sun

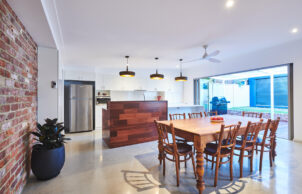

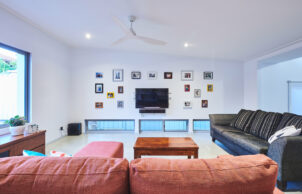

• Polished concrete floors throughout providing thermal mass and saving on additional floor materials
• Draft-proofing, sealing and self-closing exhaust fans to minimise air exchange

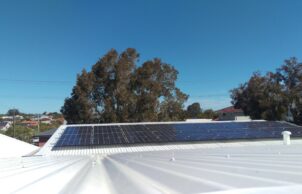

• 5.6kW Solar PV grid interconnected system

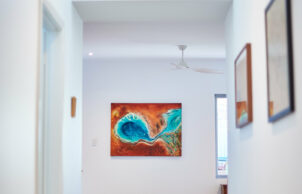

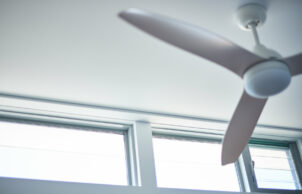

• Energy efficient DC ceiling fans throughout
• Energy efficient LED lighting throughout with master switch
• Energy efficient washing machine, refrigerator and dishwasher (no dryer)
• Double-glazed windows
• Clerestory windows to maximise natural lighting in central areas of the house
• All electric. Gas connection physically removed.

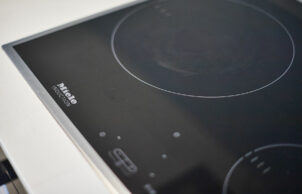

• Induction cooktop
• High efficiency heat pump Hot Water System with timer to maximise solar power utilisation
• Waterwise shower head, taps and toilets

Garden Features:

• Waterwise local and WA native plants suitable for local soils
• Drip irrigated garden beds with waterwise, chunky, pine bark mulch
• Minimal grassed areas for children’s play with fully programmable irrigation

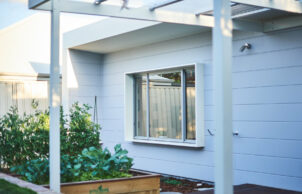

• Wicking kitchen garden beds with “Waterups” technology
• No paved areas to maximise ground penetration of rain
• Worm farm and composting of food waste

This house achieved a NatHERS rating of 8.2 stars using NatHERS accredited software. Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

Sustainability Features

Years Open
2020
2021
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances

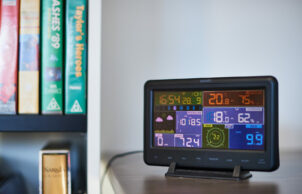

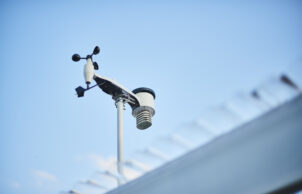

      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Low flow shower heads
      Low flow taps
      Drip irrigation

    • Average water consumption per day:
    • 0.24kL/day
    • Water harvesting and saving
    • Toilet with integrated hand-basin (flushes with water used for hand washing)
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Adjustable Shading
      Blinds
      Eaves
      Honeycomb blinds
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:

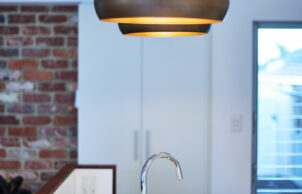

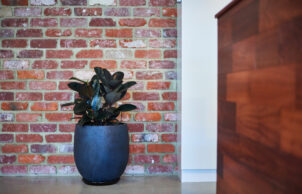

    • • Light coloured wall and roof cladding paint colours to reduce solar absorptance during summer • Vapour permeable membrane frame wrap • Red bricks salvaged from demolition used for construction of feature and new retaining walls • Reclaimed fill used as part of earthworks • Self-closing exhaust fans to reduce infiltration losses
    • Recycled and reused materials:
    • Bricks
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • 4.0
    • Under Roof Insulation Type:
    • Anticon
    • Under Roof Insulation Rating:
    • 1.3
    • External Walls Rating:
    • 2.5
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 8.2
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 5.6

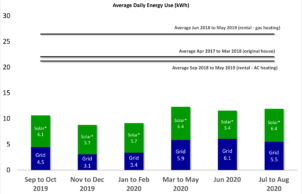

    • Average Daily Energy Consumption:
    • 2.6 (1.2 from grid & 1.5 from solar panels)
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $500,000 2019
    • Estimate of annual savings:
    • $2000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 166 m2, Land 495 m2
    • BAL Rating
    • BAL – Low: There is insufficient risk to warrant specific construction requirements
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Metal (Colorbond)
      Timber
    • Window and Door Types
    • Bi Fold
      Casement
      Clerestory windows
      Double glazing
      Louvre windows
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Edible garden
      Frog friendly
      Local indigenous plants
      Native plants
      Water wise plants
      Wicking beds
      Worm farm
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Swap with friends and neighbours
      Waste free/reduced construction site

    • Other Waste Reduction Practices:
    • Homemade palm oil-free soap
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Cabinet design to minimise dust collection
      Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Formaldehyde free cabinets
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
Location
Mount Hawthorn WA 6016
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Element Builders Pty Ltd
    • Designer
    • Sid Thoo
