Mulgrave/Wheelers Hill 1970’s Retrofit Energy Efficiency 2018

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Wheelers Hill VIC 3150
    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
      Retrofit
    • Builder
    • AV Jennings

About Mulgrave/Wheelers Hill 1970’s Retrofit Energy Efficiency

Come and visit our 1970’s home that we have been retrofitting to Passive House Principles to be more energy efficient. Air tightness of this home has produced some amazing results, but insulation consistency is also important! Achieving 5ACH@50Pa. Some initiatives we have undertaken include spray foam walls and floor insulation, LED lighting, and retrofitting double-glaze and triple glazed windows. A grid-connected solar system provides a renewable energy source. We monitor our energy and air quality and as our house is well sealed we have forced energy recovery ventilation.  All ducting, gas and evaporative system, has been removed resulting in a ductless, gasless and well sealed home with split system climate control.  HRV ventilation system installed with strategic ventilation implementations in the bathroom and toilet.

Our home includes;

  • 8000 above ground storage
  • 2000pa cost saving estimate
  • Efficient lighting
  • Efficient appliances
  • Energy monitoring
  • Draught proofing
  • Spray Foam floor
  • Water wise plants in garden
  • 2.6 internal and external walls rating

SUSTAINABLE FEATURES

Years Open
2015
2017
2018
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Draught proofing
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Shading
    • Active heating cooling:

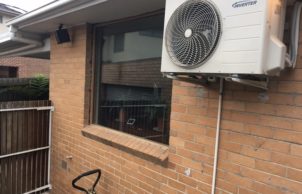

    • Heat pump
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:

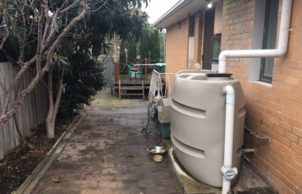

    • Above ground storage
    • Above ground rainwater storage Type:
    • Plastic Tanks
    • Above ground rainwater storage Size
    • 8000
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Bricks
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal and external walls
      Floor
    • Ceiling Type:
    • Earthwool
    • Ceiling Rating:
    • 4
    • Floor Type:
    • Spray Foam
    • Floor Rating:
    • 2.6
    • Internal / External Walls Type:
    • Spray Foam
    • Internal / External Walls Rating:
    • 2.6
RENEWABLE ENERGY SPECIFICATIONS
    • Energy star rating:
    • TBA
    • Renewable energy used:
    • Solar PV grid connect
COSTS AND COST SAVINGS
    • Cost estimate of sustainable home/features:
    • 25000
    • Estimate of annual savings:
    • 2000pa
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 110
    • Window and Door Types

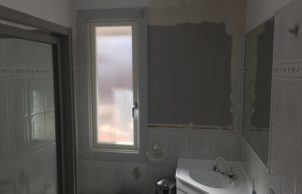

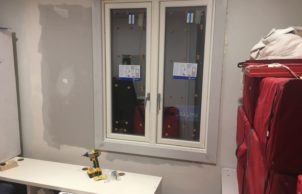

    • Double glazing
      Triple glazing
      Low-e, films
    • Universal Design Features
    • Adaptive design
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Water wise plants
