House Notes – Nook On The Hill

The Nook is a double storey, single bedroom house with a 24m² footprint. It is situated on a one hectare block on Djab Wurrung country, off the eastern side of Gariwerd in Western Victoria.

The design philosophy of the Nook has always followed one of minimal impact that aims to exploit maximum functionality from a small form factor.

Recycled materials have been favoured wherever possible in the construction of the house and where new materials have been used their quantities have been carefully calculated to ensure minimal waste occurs.

Aesthetics and functionality are always weighted equally in design considerations to ensure that one may not compromise the other. Being the designer and builder myself I decided I would take the opportunity to approach the project with a fluid mentality. This meant that I was able to assess and reassess any decisions and design elements I had made, modifying and improving the build sometimes on the fly.

The design of the house is influenced by phases in my life, from; travelling through Europe, living in the United Kingdom and growing up in the Gariwerd landscape in Australia. Each phase makes its own unique contribution to the overall look and functionality of the house.

The house is almost entirely off grid. A grid connected 4.5kw/h solar system utilising 11 high output panels has been squeezed onto the roof and to date has supplied 50% of the house’s electricity requirements. Energy efficient heat pumps are used to heat the water and moderate the temperature of the house when required. Highly rated thermal insulation in varying form factors (bulk batts, PIR board and cellulose blow in fibres) has been incorporated into the walls and ceiling of the house. These are complemented by double glazed windows housed in high performance thermally efficient UPVC frames. Solarban UV reflective coating has been applied to all the glazing on the front facade of the house in combination with automated internal blinds to reduce the influence of UV overheating the space. Water is sourced via a bore on the hill and all waste is dealt with on site through a traditional septic system setup.

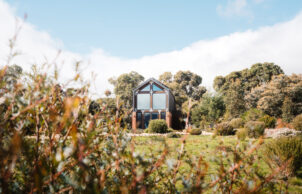

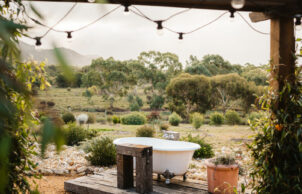

Outside we have rewilded what was a bare hill and planted over 450 plants that now make up the beautiful garden that surrounds the house. Most of the plants used are Australian natives, some endemic to the area and a very small portion being South African. These plants are protected by a six foot high fence that keeps feral deer out, this has allowed the garden to flourish and attracted hundreds of native birds who now inhabit the hill alongside us. The house is positioned so that it may take in the beautiful views of the Gariwerd mountains.

For more information and to see how you can stay as a guest at the Nook visit www.nookonthehill.com.au or instagram @Nook_On_The_Hill

Nook on the Hill is featured in Sanctuary magazine Issue 62.

Sustainability Features

Years Open
2023
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Energy monitoring
      Smart home features
    • Passive heating cooling:
    • Cross ventilation
      Heat recovery ventilation system
    • Active heating cooling:
    • Heat pump
      Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Drip irrigation
    • Average water consumption per day:
    • 123
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Skylight
    • Window Protection:
    • Automation/controls
      Blinds
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • All timber used in the house -bar the framing timber in the upper storey and roof- is recycled. All the electricity used on site was carbon neutral or completely offset.
    • Recycled and reused materials:
    • Bricks
      Floorboards
      Railway sleepers
      Sleepers
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls
      Floor
    • Ceiling Type:
    • Bulk – natural wool
    • Ceiling Rating:
    • 4
    • Floor Type:
    • Slab
    • Floor Rating:
    • .1
    • Under Roof Insulation Type:
    • Anticon blanket
    • Under Roof Insulation Rating:
    • 1.3
    • External Walls Rating:
    • 5.7
    • External Walls Type:
    • Bulk – cellulose fibre
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 6
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 4.5kw
    • Average Daily Energy Consumption:
    • 10
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • 180000
    • Cost estimate of sustainable home/features:
    • 3000
    • Estimate of annual savings:
    • 600
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 36m2
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Double brick
      Metal (Colorbond)
    • Window and Door Types
    • Awning
      Double glazing
      Low-e, films
      Skylights
      Tilt and turn
    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Bird-nesting boxes
      Composting
      Drip irrigation
      Local indigenous plants
      Native plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
      Swap with friends and neighbours
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Automated ventilation system
      Carpet free - tiles/concrete/timber flooring throughout
      Chemical free cleaning products used
      Cross flow ventilation
      Heat recovery ventilation (HRV)
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
      Natural oil sealer/finishes
      VOC free paints/sealer/varnish
      Wax based sealer/finish
Location
Halls Gap VIC 3381
    • Housing Type:
    • Tiny Home - Fixed
    • Project Type:
    • New Build
    • Builder
    • Benjamin Bailey-Webb
    • Designer
    • Benjamin Bailey-Webb
