Our Comfy Home 2020

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location

    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
    • Open with support of
    • Clean Energy Nillumbik
    • Builder
    • Owner Builder

About Our Comfy Home

We thought long and hard about how we could change our uncomfortable concrete box into our dream home.

Starting with a house that rated 1.6 stars under the NatHERS scheme, concrete block construction on a concrete slab with a flat roof, poor solar access and a Bushfire Attack Level of 29,  we had a lot of challenges with this house. It was hot in summer, cold in winter and we thought it would be difficult to update. We decided to make the most of our spectacular views and change the way we used some rooms. Our old lounge is now the master bedroom and the pokey third bedroom and living area at the back were extended by 20m2 and are now a large open living/kitchen/dining area.

We raised the roof by 150mm and added a combination of high density polyester batts, Kingspan K10 soffit board and Aircell to achieve R values between 4.5 and 6.0. Replacing most windows with timber framed double glazed units, making them smaller and framing the views. We also insulated the inside surface of all external walls with Kingspan K17 insulated plasterboard, all of which has made the house so much more comfortable to live in and now rates at 6.3 stars under the NatHERS scheme and 10 stars under the Scorecard program.

We got rid of the wood heater which cost us $1,200 per year to run and replaced it with a Daikin US7 2.9kW split system which is sufficient to heat and cool the 70m2 living area and study.

The 34 year old kitchen was replaced, including an induction cooktop, convection microwave oven and high efficiency dishwasher. Low VOC cabinetry, glues, paints and other finishes have been used to minimise off-gassing of harmful chemicals. Bathrooms were updated with the bath converted to a rain garden and highly efficient tapware and showerheads saving over 70,000 litres of water each year.

All lighting has been upgraded to LED, inside and out.

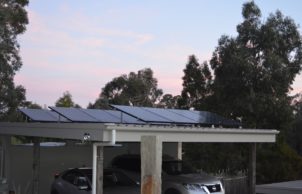

We already had solar hot water and have since added a 4.5kW solar PV. Battery storage is next and we intend to replace one car with an electric vehicle within the next couple of years.

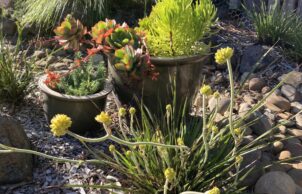

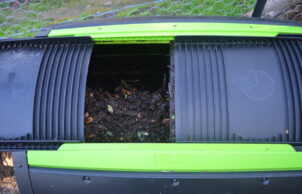

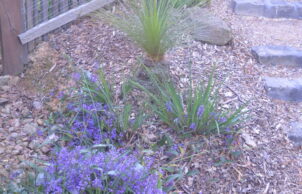

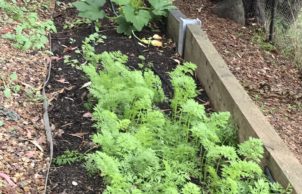

We have two rainwater tanks that holding a combined 6,000 litres and this water is used on the garden. The garden is planted mainly with indigenous plants and a huge vegetable patch that is managed without chemicals. We have two compost bins and a worm farm dedicated to recycling dog poo. The worm tea and castings are used on areas away from the veggie patch!

We thought it would be impossible to make our home as efficient and comfortable as it is without bulldozing it and starting from scratch. But with a little bit of research we were able to find solutions for our house that meant keeping and re-using or giving away a lot of the old features and minimising the use of new materials. We are so happy with the renovation and plan to stay here for a long time.

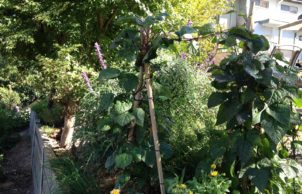

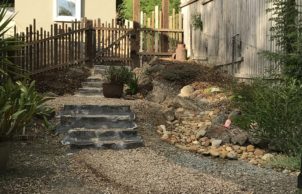

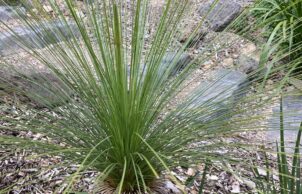

Over the last year we have been working on a new side fence (made from mostly reclaimed timber) and the landscaping. We have planted a huge number of indigenous and other native plants and continued to work on front access. Being able to do this while confined during the pandemic has kept us sane and given us some goals to work towards. We’ve followed some great advice from Costa Georgiadis and taken great pleasure in observing nature in our own yard.

You can also speak with this homeowner directly on Saturday 19 September, online, as part of The Nillumbik Trail. Register here to participate.

This house achieved a NatHERS rating of 6 stars using NatHERS accredited software (First Rate5). Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

The house also achieved 10 stars with the Victorian Residential Efficiency Scorecard. If you would like to find out more click here.

This home is supported by

Join the Nillumbik Trail on Sustainable House Day, hosted by Clean Energy Nillumbik and Nillumbik Shire Council.

View Featured Video

SUSTAINABLE FEATURES

Years Open
2016
2019
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Shading
      Thermal mass
    • Active heating cooling:
    • Heat pump

    • Active heating cooling:
    • One Econoheat panel on internal bedroom wall uses 400W on a timer. Pedestal fan used in bedroom in summer.
    • Water heating:
    • Solar hot water (evacuated tube)
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Stormwater management
      Low flow shower heads
      Low flow taps
      Drip irrigation
    • Average water consumption per day:
    • 123 litres
    • Above ground rainwater storage Type:
    • Two Colorbond tanks
    • Above ground rainwater storage Size
    • 1 x 3,500 litres and 1 x 2,500litres
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Skylight
      Solar skylight

    • Energy Efficient Lighting
    • Solar light - dedicated small solar panel powers an internal laundry light during the day.
    • Window Protection:
    • Deciduous tree/vegetation
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:

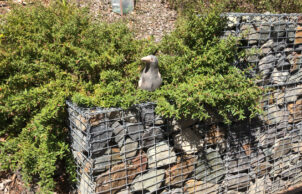

    • Landscaping includes re-use of old retaining wall timber, found objects and reclaimed bluestones
    • Sustainable materials:
    • Timber window frames, polyester insulation batts, FSC or re-used roof framing timbers, ply cabinetry, woollen carpets, low VOC paints, oils and glues for all fixtures and fittings.
    • Recycled and reused materials:
    • Basins/sinks
      Bath
      Concrete
      Excavated earth
      Insulation
      Paving
      Power poles
      Railway sleepers
      Rocks/stone
      Sleepers
      Timber

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      External walls
    • Ceiling Type:
    • High density polyester batts and PIR soffitt board, Aircell 65
    • Ceiling Rating:
    • R4.5-6.0 depending on depth of cavity
    • Internal / External Walls Type:
    • External walls Kingspan K17 insulated plasterboard.
    • Internal / External Walls Rating:
    • External - R2.0, internal walls are all concrete block
    • External Walls Rating:
    • R2.0
    • External Walls Type:
    • PIR board with plasterboard attached
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 4.5kW
    • Average Daily Energy Consumption:
    • 4.4kWh
COSTS AND COST SAVINGS
    • Cost estimate of sustainable home/features:
    • $65,000
    • Estimate of annual savings:
    • $3,500
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 129m2
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Concrete blocks
    • Window and Door Types
    • Double glazing
      Retrofit Double Glazing
      Skylights
      Sliding windows/doors
    • Universal Design Features
    • Lever handles for doors (no knobs)
      Tapware to be easily accessed from outside the shower
      Window openings easily accessible
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Composting
      Drip irrigation
      Edible garden
      Local indigenous plants
      Organic
      Native plants
      Water wise plants
      Wicking beds
      Worm farm
    • Waste Reduction Practices:
    • Compost all food scraps
      Recycle
      Repair
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Cabinet design to minimise dust collection
      Chemical free cleaning products used
      Cross flow ventilation
      Formaldehyde free cabinets
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural fibre furnishings
      Natural light and ventilation
      Natural oil sealer/finishes
      Wax based sealer/finish
