Oxley House 2019

Address
Darlington WA 6070
HOUSE DETAILS
    • Housing Type:
    • Standalone House
    • Chosen Charity
    • Sustainable House Day 2019
    • Designer
    • Studio Origami

Comfort, healthy indoor environment, high performance and meeting the budget were the key things we wanted to achieve when designing this home.

Being client and designer in one, we went through a few different concepts and shapes to find the most cost-effective solution that would work with the site and would position the house in a way that allows for the outdoor areas to be used in collaboration with the interiors.

Using ready-cut structural insulated panels (SIPs) in a hybrid way, we have managed to lower the cost of the build by approximately 10%, which was a major benefit.

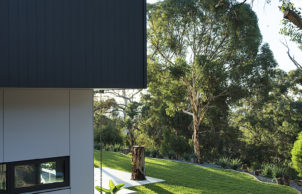

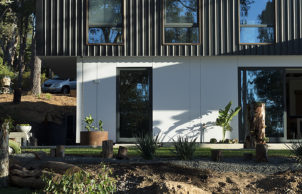

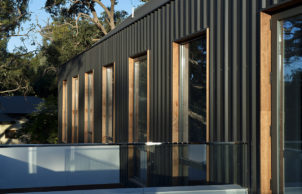

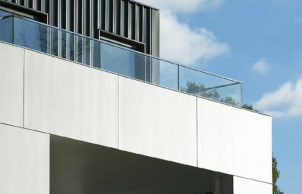

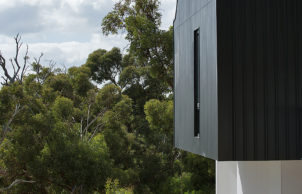

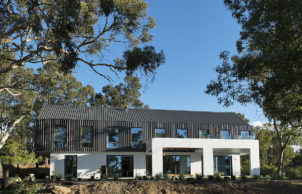

Colorbond cladding that wraps over the first floor and covers the gutters and downpipes was one of the details that we really favoured and carefully planned. Playfulness of textures and finishes, secret passage on the upper floor, and central staircase with exposed oriented strand board (OSB) are all integral to the design. The OSB acts as a major interior feature and is a great example of how functionality can be linked with the visual perception of the space.

This house has just recently won a few BDAWA Awards:

  • Best New Residential design up to $500,000 – State And National winner
  • Best Residential Interior design – State commendation
  • GreenHouse Project of the year – State winner

Key features:

  • Three bedrooms, three bathrooms, activity, central kitchen–dining area, separate living on the granny flat, office and balcony (house floor area 260 m2) +17 m2 store
  • 2805m2 site with northern aspect
  • Double carport
  • Raked ceiling to upper floor with exposed SIP panels to half

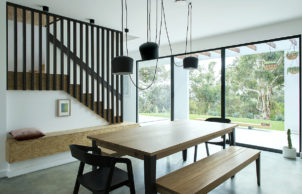

  • Central staircase with feature timber screen
  • Thermal mass of slab used to regulate internal temperatures laid on Cupolex domes and thermal wrap

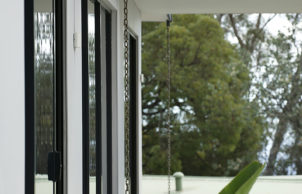

  • Double-glazed low-e windows with thermally broken frame
  • Airtight SIP construction with energy recovery ventilation system for ventilation and healthy indoor environment
  • Stiebel Eltron hot water heat pump
  • Aerobic treatment unit (ATU) for sewer and greywater management.

Designed by Studio Origami.

Chat to a member of the Australian Electric Vehicle Association (AEVA) about EV’s they will have their Hyundai Kona on display for SHD



This house achieved a NatHERS rating of 7.4 stars using NatHERS accredited software (AccuRate). Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

SUSTAINABLE FEATURES

Years Open
2018
2019
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Passive solar designed home
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat exchange ventilation system
      Heat pump
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Blackwater system
      Stormwater management
      Other
    • Water harvesting and saving
    • ATU unit installed to reuse recycled water for garden irrigation.
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
      Skylight
    • Window Protection:
    • Blinds
      Deciduous tree/vegetation
      Drapes/curtains
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Excavated topsoil from the previous house slab was contained on-site rather then removed and Cupolex product was used to reduce the need for creating a new sand pad and replace the engineered fill under the slab. Allowances have been made to connect the house to PV panels when budget allows and install rainwater tank in the internal courtyard for garden needs.
    • Recycled and reused materials:
    • Basins/sinks
      Paving
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Internal walls
      External walls
      Floor
    • Floor Type:
    • Bulk – glass wool
    • Floor Rating:
    • R4.0
    • Under Roof Insulation Type:
    • Insulated panels
    • Under Roof Insulation Rating:
    • R4.0
    • Internal Walls Insulation Type:
    • Insulated panel system
    • Internal Walls Insulation Rating:
    • R2.8
    • External Walls Rating:
    • R3.57
    • External Walls Type:
    • Insulated panel system
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.4 Stars
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6.5
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $500000
    • Cost estimate of sustainable home/features:
    • $30,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 260m2
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • Roof
    • Insulated panel (sandwich panels)
    • Wall Materials
    • Structural insulated panels (SIP's)
    • Window and Door Types
    • Awning
      Double glazing
      Low-e, films
      Sliding windows/doors
      Pocket doors
      Skylights
      Other
    • Window and Door Types
    • Velux Skylight
    • Universal design accessability
    • Adaptive design
      Multi-generational
    • Universal Design Features
    • 80cm minimum door opening width
      Contrasting colours and material for vision impaired
      Hobless showers
      Lever handles for doors (no knobs)
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors

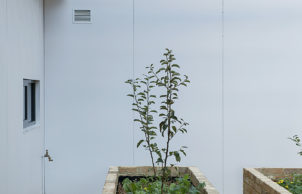

    • Permaculture garden beds in the internal courtyard designed in close proximity to the kitchen for ease of care.
    • Garden / Outdoors
    • Composting
      Edible garden
      Permaculture
      Other
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Cross flow ventilation
      Heat recovery ventilation (HRV)
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
