Parkside Passive Perfection 2020

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Jolimont WA 6014
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Open with support of
    • Renew Perth Branch
    • Builder
    • I-Smart Building Group
    • Designer
    • Kellett Design Group

About Parkside Passive Perfection

This home, while not a Certified Passive House, is built according to the same principles and comes close in specification and performance.

The air-tight rating was 0.72 air changes per hour under the standard blower door test. Other Passive House features of the build include thermal insulation to walls (R3.0) and ceilings (R6.0), double-glazed windows with thermally broken uPVC frames and light bridge grey low E double glazing, heat-recovery ventilation systems, heat-pump hot water system and an absence of thermal bridging throughout the entire structure.

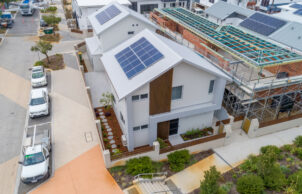

The design of this home was predominantly focused on orientation, strategic placement of windows in conjunction with internal layout function and the shape of the roof which suits our north facing 6.6kW PV system with 5kW 3 phase inverter.

The house area noted excludes garages of an additional 85.86m2. The price includes external decking and paths, garden planting and reticulation, boundary wall, gates, security cameras and many other features.

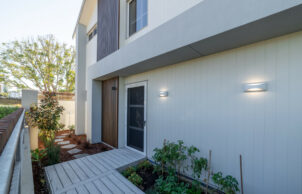

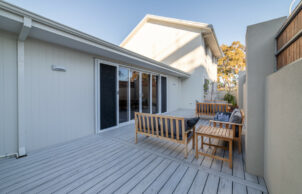

Construction uses 95% sustainable sourced plantation timber, concrete ground floor slab and fibre cement external cladding which has a fire rating of BAL 40. Decking and an external feature cladding utilizing composite timber which is manufactured from 87% recycled materials.

The local zoning allowed for a large home and for the sake of versatility, we chose to design a family home (3 bedrooms and a study) plus a secondary dwelling with 2 bedrooms.

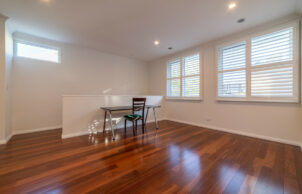

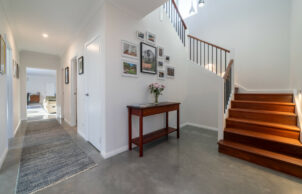

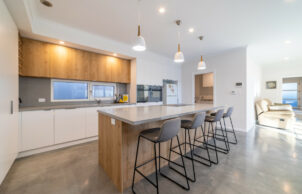

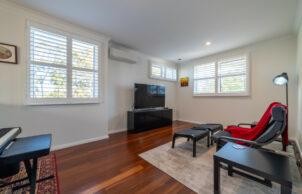

Floor finishing is burnished concrete to the ground floor interior and recycled Jarrah from the Old Subiaco Markets to the first floor living spaces. The upstairs bedrooms have carpet and the laundry and bathrooms are tiled.

Staircases are wide enough for people to pass and space is allowed for a future elevator in the front entrance.

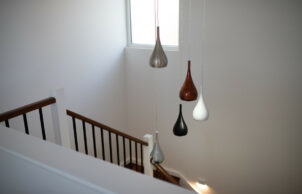

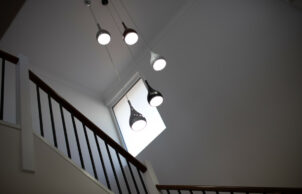

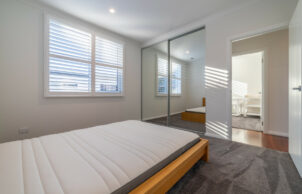

Windows are shielded by north-facing eaves, heavy curtains with ceiling recess to the main living room and timber plantation shutters to all other windows facing north, east and west. All lighting uses LED technology.

A weather station has been displaying data since mid April 2020 and the interior temperature has stayed with the range of 19 – 24C, with minimal use of a split system air conditioner to boost warmth. Furthermore, with two occupants (plus an extra five for four weeks), power usage for January to June amounted to $98.63, including GST but excluding fixed the daily charge and credit card fees.

View Featured Video

SUSTAINABLE FEATURES

Years Open
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Deciduous planting around house
      Heat recovery ventilation system
      Passive solar designed home
    • Active heating cooling:
    • Heat exchange ventilation system
      Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Low flow shower heads
      Low flow taps
      Drip irrigation
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Deciduous tree/vegetation
      Drapes/curtains
      Eaves
      Shutters
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Floorboards
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6.0
    • Floor Type:
    • Bulk - natural wool
    • Floor Rating:
    • R2.5
    • Internal Walls Insulation Type:
    • Bulk – natural wool
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R3.0
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 7.1
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6.6kW
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $850,000
    • Cost estimate of sustainable home/features:
    • $73,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 290.74m2
    • BAL Rating
    • No BAL rating requirements at time of construction
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
    • Window and Door Types
    • Double glazing
      Low-e, films
      Stacking windows/doors
      Tilt and turn
    • Universal design accessability
    • Multi-generational
    • Universal Design Features

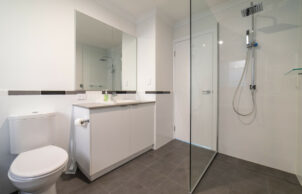

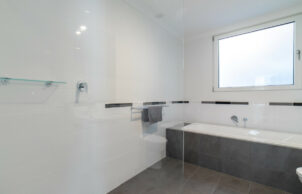

    • Hobless showers
      Lever handles for doors (no knobs)
      Ramps and path gradients must be less than 20:1
      Shower head on rail for various heights
      Tapware to be easily accessed from outside the shower
    • Number of bedrooms
    • 6
    • Number of bathrooms
    • 3
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Drip irrigation
    • Waste Reduction Practices:
    • Recycle
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Cabinet design to minimise dust collection
      Heat recovery ventilation (HRV)
      Natural light and ventilation
