Pretty Perfect Pavilion 2023

House Notes – Pretty Perfect Pavilion

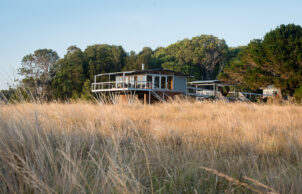

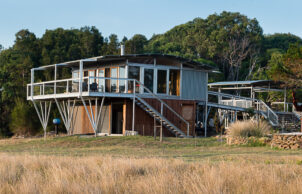

A self-contained prefabricated pod extends the living space without impacting the landscape on our NSW South Coast property. Tucked away on the 16-hectare bushland property, our Ecoshelta pavilion takes advantage of its jaw-dropping headland position while minimising the impact on the landscape and environment.

Sustainability Features

Years Open
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Shading
      Thermal mass
    • Active heating cooling:
    • Ceiling fans
      Heat pump
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
    • Above ground rainwater storage Type:
    • Rainwater Tank
    • Above ground rainwater storage Size
    • 40, 000L under pavilion
    • Electric Vehicle Type
    • Tesla Model S
    • Window Protection:
    • Roller doors
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Aggregate
      Basins/sinks
      Bath
      Benchtops
      Cladding
      Decking
      Doors
      Floorboards
      Insulation
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 6kW
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $540, 000
HOUSE DESIGN SPECIFICATIONS
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Rammed earth
    • Window and Door Types
    • Recycled Australian hardwood door and window frames by Architectural Hardwood Joinery, Illawarra, with Viridian argon-filled double-glazed units with toughened glass (BAL-19 rated); Fixed glazing using Capral Glazing Adaptors direct fixed to structural framing; Breezway louvres for natural ventilation; Centor E2+ sliding door system with integrated thermal and bushfire seals; Capral SupaScreen stainless steel bushfirerated insect and security screening; Centor S4 rolling insect screens
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 100cm minimum door opening width
      Kitchen bench/table for wheelchairs to access (75-85cm high)
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      No stairs/steps
      No Corner cupboards

    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
HEALTHY HOME FEATURES
    • Healthy home features
    • Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
Location
Eurobodalla Shire, South Coast NSW
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Ecoshelta
    • Designer
    • Ecoshelta
