Robinson House 2024

House Notes – Robinson House

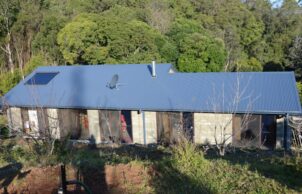

The house was designed specifically for this site with an emphasis on maximising air flow in summer and capture as much of the sun’s energy as possible in winter. It is working brilliantly.

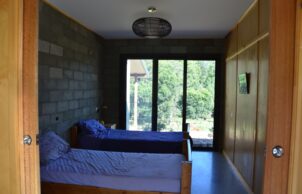

The house is built of Timbercrete bricks, fantastic insulators, on a concrete slab on waffle pods with low emisivity glass doors and R4 wool insulation in the ceilings.

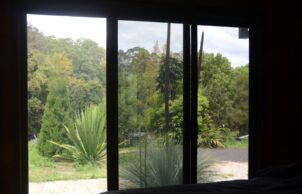

The large three panel sliding doors (2.4 x 2.6m), 5 on the North and 5 on the South plus the double internal sliding doors on every room allow ever little breeze to cool the house in summer. Our pedestal fan is rarely used.

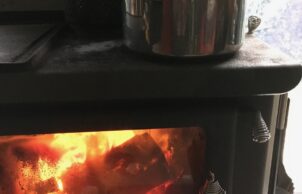

We have a slow combustion fire which we light from time to time when we have guests or just want to look at the fire, or maybe cook on it. The ambient temperature in the house is very comfortable of an evening and night in winter with just one blanket needed for a comfortable nights sleep.

To the north of the house is a selection of deciduous trees, some provide food, others are decorative, in summer all cool the garden and some shelter the house from the hot afternoon sun.

We grow all our own fruit, except apples, and almost all our own vegetables. The garden, approximately 1/2 acre, is more productive every year.

Our house is on Bushfire Prone Land and as well as year round thermal and general comfort has been built to have a high level of bushfire resistance.

Sustainability Features

Years Open
2014
2015
2024
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
      Energy monitoring
    • Passive heating cooling:
    • Cross ventilation
      Deciduous planting around house
      Passive solar designed home
      Shading
      Thermal mass

    • Passive heating cooling:

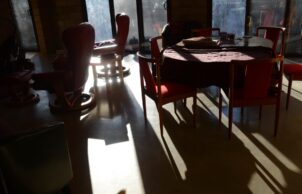

    • the sun floods in onto the concrete floor and warms the slab for gradual release each night in winter. In summer the sun doesn't enter the house.
    • Water heating:
    • Solar hot water (evacuated tube)
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
      Stormwater management
      Low flow shower heads
      Low flow taps
      Hot water recirculation
    • Average water consumption per day:
    • tiny
    • Above ground rainwater storage Type:
    • Metal and Plastic
    • Above ground rainwater storage Size
    • 131,000L
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Electric Vehicle Type
    • Toyota RAV4 hybrid
    • Window Protection:
    • Deciduous tree/vegetation
      Eaves
SUSTAINABLE & RECYCLED MATERIALS
    • Sustainable materials:
    • Timbercrete is made of sawdust, by product from timber mills, and concrete.
    • Recycled and reused materials:
    • Paving
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      External walls
      Floor
    • Ceiling Type:
    • Bulk – natural wool
    • Ceiling Rating:
    • 4
    • Floor Type:
    • Polished concrete on waffle pods
    • Floor Rating:
    • R7.0
    • External Walls Rating:
    • R7.0
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Energy storage/battery
      Solar PV off-grid
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • approx 300K in 2015
    • Cost estimate of sustainable home/features:
    • 300K to build
    • Estimate of annual savings:
    • no heating or cooling bills, no power bills of any sort. No idea how much this saves us.
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 100m2
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Timbercrete
    • Window and Door Types
    • Low-e, films
      Sliding windows/doors
      Stacking windows/doors
    • Universal Design Features
    • 100cm minimum door opening width
      Flush thresholds (no lip) to all external doors
      Hobless showers
      Lever handles for doors (no knobs)
      Minimum 110cm wide hallways
      Power points at 60cm above floor level and 50cm from internal corners
      Pocket doors so that cabinet doors are out of the way
      Rocker style light switches
      Shower head on rail for various heights
      Slip resistant flooring
      Space around toilets for ease of access in wheelchairs
      Tapware to be easily accessed from outside the shower
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Bee keeping
      Bee hotels/friendly
      Chickens
      Composting
      Edible garden
      Frog friendly
      Local indigenous plants
      Orchard
      Organic
      Native plants
      Swales
      Water wise plants
    • Waste Reduction Practices:
    • Compost all food scraps
      Make jams/conserves
      Pickle and preserve food
      Recycle
      Repair
      Take own containers to the supermarket and for take away food
      Swap with friends and neighbours
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Cabinet design to minimise dust collection
      Carpet free - tiles/concrete/timber flooring throughout
      Cross flow ventilation
      Natural fibre furnishings
      Natural light and ventilation
      Natural oil sealer/finishes
      Wax based sealer/finish
Location
Tullera NSW 2480
    • Housing Type:
    • Standalone House
    • Project Type:
    • Continual Improvement
    • Builder
    • owner built
