Seascape 2023

House Notes – Seascape

We wanted to create a small, beautiful modern home that was efficient, sustainable, filled with light, low maintenance and connected to its external landscape which could be achieved in conjunction with a reduction in our carbon footprint.

To achieve this we installed:

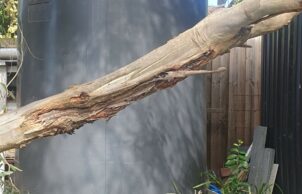

• two above ground water tanks

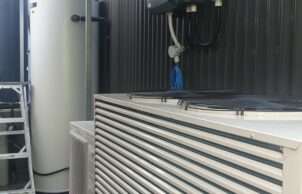

• a heat-pump hot water service
• solar panels
• double glazed windows that provide cross flow ventilation

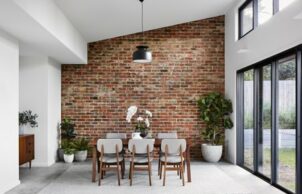

• internal reverse brick walls
• a thermally insulated slab

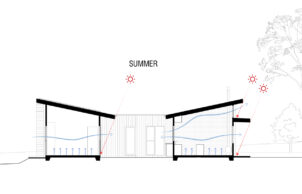

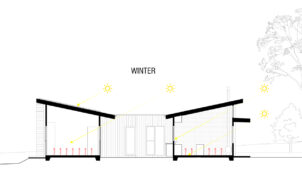

• roof eaves that reduce sun access in summer but increase it in winter
• north facing windows in dining/kitchen/living and two bedrooms
• a passageway door used to zone the back and front of the house for heating and cooling purposes
• provision for an EV charger and batteries

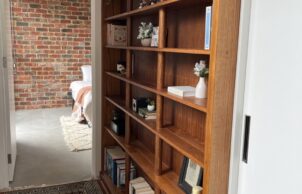

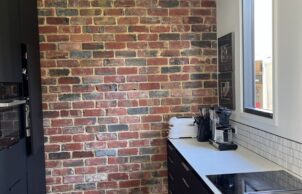

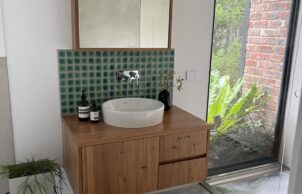

Wherever possible we kept waste to a minimum. The bricks were secondhand, soil from the site excavation was reused to create raised garden beds, porcelain kitchen and bathroom offcuts were used elsewhere. Trees that were removed are being used as firewood and mulch onsite. Colorbond and spotted gum offcuts were used in a bookcase, fence and gate. Tapware and appliances are all low water and energy certified. Spare parts for the kitchen and bathroom tapware are readily available. Several of the lights are second hand or recycled and they are all LED. Paint is low VOC and the kitchen and laundry cupboards have the greenest Laminex rating. The toilets use tank water.

We wanted a garden that would attract native insects, birds etc. and once established would be drought tolerant, so planting has been mainly indigenous and native. The small vegetable garden, fruit trees and potted plants are watered with tank water.

The house was built during the COVID lockdown so there were issues in procuring some materials which would have been more sustainable.

Sustainability Features

Years Open
2023
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
    • Passive heating cooling:
    • Passive solar designed home
      Thermal mass
    • Active heating cooling:
    • Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
    • Above ground rainwater storage Type:
    • Tank
    • Above ground rainwater storage Size
    • 7000
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Blinds
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Bricks
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • 4
    • Floor Type:
    • Bulk - polystyrene board
    • Floor Rating:
    • 1.78
    • Under Roof Insulation Type:
    • Reflective foil
    • Under Roof Insulation Rating:
    • 1.8
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • 2.5
    • External Walls Rating:
    • 2.5
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 7KW
    • Average Daily Energy Consumption:
    • 3.79
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • 630000
    • Cost estimate of sustainable home/features:
    • 22,000
    • Estimate of annual savings:
    • 1000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 155
    • BAL Rating
    • BAL – Low: There is insufficient risk to warrant specific construction requirements
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Metal (Colorbond)
      Timber
    • Window and Door Types
    • Awning
      Double glazing
      Louvre windows
      Sliding windows/doors
      Stacking windows/doors
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 80cm minimum door opening width
      Flush thresholds (no lip) to all external doors
      Hobless showers
      No stairs/steps
      Ramps and path gradients must be less than 20:1
      Rocker style light switches
      Shower head on rail for various heights
      Space around toilets for ease of access in wheelchairs
      Tapware to be easily accessed from outside the shower
      Washing machine/dryer on plynth for easy access
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Local indigenous plants
      Native plants
      Worm farm
HEALTHY HOME FEATURES
    • Healthy home features
    • Cross flow ventilation
Location
Balnarring VIC 3926
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
