South Hobart Units 2019

Address
South Hobart TAS 7004
HOUSE DETAILS
    • Housing Type:
    • High Density Housing/Strata Development
    • Open House Style
    • Regular Guided Tours – No booking required
    • Open Hours
    • 10am to 4pm
OPENING WITH SUPPORT OF
    • Open with support of
    • Renew Tasmania South Branch
    • Builder
    • Owner Builder
    • Designer
    • Nigel Legge Architect

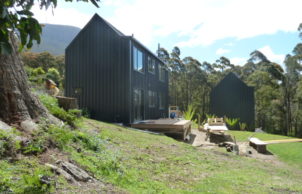

These two small strata title units have been built on a treed site in the shadows of Mt Wellington, 10 minutes from the city of Hobart. They have been oriented for privacy from house above and for the view down the valley. The units are timber framed with metal cladding, good levels of insulation (floors R 3.3, external walls R 3.8, and roofs R 5.3), low E double glazed composite timber/aluminium windows, small slow combustion wood heaters and LED lighting throughout.

These units are small in size and this is reflected in their good energy rating (the First Rate programme automatically increases the star rating score for smaller floor areas).

Features includes;

  • Timber framed plasterboard with fibreglass insulation ceiling type
  • Efficient lighting
  • R5.3 ceiling rating
  • 8.1 stars energy rating
  • R3.3 floor rating
  • Timber framed with particle board and timber overlay floor type
  • R3.5 internal-external walls rating

The architect for this house is Nigel Legge and the house was owner built with advice from the builder of the adjacent unit.



This house achieved a NatHERS rating of 8.1 stars using NatHERS accredited software (FirstRate5). Find out how the star ratings work on the Nationwide House Energy Rating Scheme (NatHERS) website.

SUSTAINABLE FEATURES

Years Open
2017
2019
SUSTAINABLE FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
    • Passive heating cooling:
    • Cross ventilation
      Passive solar designed home
      Shading
    • Sustainable materials:
    • Timber framing generally. Low emission slow combustion wood heater (refer CSIRO 2003 - Life Cycle Assessment of Greenhouse Gas Emissions from Domestic Woodheating).
    • Water harvesting and saving features:
    • Above ground rainwater storage
      Stormwater management
    • Above ground rainwater storage Type:
    • Above ground metal storage tank
    • Above ground rainwater storage Size
    • 23,000 litres
    • Storage connected to
    • Garden
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Electric Vehicle?
    • No
    • Garden / Outdoors
    • Native plants
    • Healthy home features
    • Airtight house design
      Natural light and ventilation
      No carpets
    • Waste Reduction Practices practices:
    • Recycle
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $300,000 including site-works.
    • Cost estimate of sustainable home/features:
    • $5,000
    • Estimate of annual savings:
    • $1,000
ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 8.1 stars
    • Renewable energy used:
    • Other
    • Renewable energy
    • Slow combustion wood heater
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Floor Type:
    • Other
    • Floor Rating:
    • R3.3
    • Internal / External Walls Type:
    • Timber framed plasterboard
    • Internal / External Walls Rating:
    • R3.5
    • Under Roof Insulation Type:
    • R1.3 fibreglass/foil blanket over battens with air space under, R4 fibreglass between ceiling framing, and non-permeable vapour barrier on inside of external stud walls.
    • Under Roof Insulation Rating:
    • R5.3
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R3.8
    • External Walls Type:
    • R1.3 fibreglass/foil blanket over battens with air space under, R2.5 fibreglass between external wall studs, and non-permeable vapour barrier on inside of external stud walls.
HOUSE DESIGN
    • BAL Rating
    • BAL – 29: Increasing levels of ember attack and ignition of debris with a heat flux of up to 29kW/m2
    • House Size
    • 71m2 conditioned area
    • Number of bedrooms
    • 2
    • Number of bathrooms
    • 1
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
    • Window and Door Types
    • Double glazing
