The Peak 2 2020

House Notes – The Peak 2

Nestd™️ is a social enterprise that sells compact housing solutions to the retail, tourism, property development and social housing sectors.

The Peak 2 is designed exclusively for Nestd™️ by world-renowned architects Grimshaw.

The segmented pod design of The Peak has been amplified to create a two storey, two-bedroom exclusive version of the original.

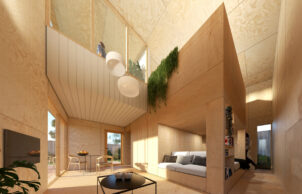

Exquisite joinery, stylish spaces, intelligent storage and a stunning balcony area culminate into the crafting of this light-filled home.

The possibilities are endless, including opportunities to upgrade to the Passive House building standard, and off-grid applications.

With a 32.5sqm footprint (and 60sqm across two levels), this sophisticated, fully self contained compact home utilises a prefabricated design to provide a stylish, sustainable and modern way to live.

Manufactured using state-of-the-art prefabrication equipment at Next Form in Clayton, The Peak 2 can be transported as a flat pack all over Australia, and can be installed and ready to live in, in just 10 days.

This minimalist and considered design integrates seamlessly across urban and rural settings and has garnered the attention of many tourism operators as well as first home buyers who are looking for a cost effective, beautiful and sustainable compact home solution.

Why choose Nestd™️?
– Affordable
– Sustainable
– Architecturally designed
– Made in Australia
– 10 days to install
– Our social purpose

For pricing and material inclusions, please visit https://nestdhomes.com.au/

Sustainability Features

Years Open
2018
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
    • Active heating cooling:
    • Ceiling fans
    • Water heating:
    • Hot water heat pump
    • Water harvesting and saving features:
    • Compost toilet
      Grey water system
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:
    • Owner can specify
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
      Floor
    • Ceiling Type:
    • Bulk – polyester
    • Ceiling Rating:
    • R3.5
    • Floor Type:
    • Bulk - polyester
    • Floor Rating:
    • R2.5
    • Internal Walls Insulation Type:
    • Insulated panel system
    • Internal Walls Insulation Rating:
    • R2.5
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • Can reach 6.9 star (site dependant)
    • Renewable energy used:
    • Solar PV off-grid
    • Size of PV system:
    • Owner can specify
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $150,000
    • Cost estimate of sustainable home/features:
    • $20,000
    • Estimate of annual savings:
    • $10,000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 32m2
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Insulated panels or blocks
      Lightweight construction (timber frame)

    • Wall Materials
    • Ply cladding - internal
    • Window and Door Types
    • Double glazing
    • Universal design accessability
    • Adaptive design
    • Universal Design Features
    • 100cm minimum door opening width
      Contrasting colours and material for vision impaired
      Flush thresholds (no lip) to all external doors
      Lever handles for doors (no knobs)
      Washing machine/dryer on plynth for easy access
      Window openings easily accessible
    • Number of bedrooms
    • 2
    • Number of bathrooms
    • 1
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Indoor plants for air filtration
      Low VOC paints/sealer/varnish
      Natural light and ventilation
Location
Clayton VIC 3168
    • Housing Type:
    • Tiny Home – Fixed
    • Project Type:
    • New Build
    • Builder
    • Next Form
    • Designer
    • Grimshaw Architects
