House Notes – Tiny House and Honey Shed

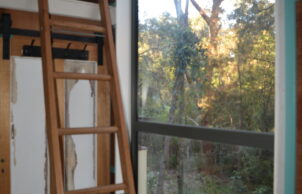

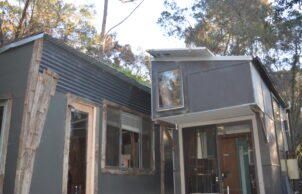

The Tiny House is built from a recycled car trailer. It was built with timber frame and two lofts. It can sleep 4 people and is an economic way to have some fun accommodation. It required some innovation to get everything to fit.

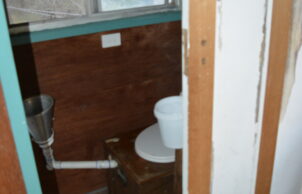

It has a urine separating compost toilet and holding tank for wastewater and so uses very little water. There is also only a very small portion of waste compared to a normal house. The small space is also easy to heat as effort was made to insulate the walls.

It has a 24v 1kw solar system and 250kwh of batteries. Enough for some lights and even the clothes washing on a sunny day. This is backed up with small camping generator and charger.

The cost of the house was minimised with second hand and often-free windows doors and glass. The house is not well protected from bushfire and like camping requires a high level of awareness of weather conditions. It would not be prohibitively expensive to replace. It could also be moved from a fire path if a season allowed for ample warning as happened in the 2020 fires and severe drought with the fires impacting over several weeks.

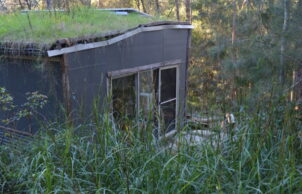

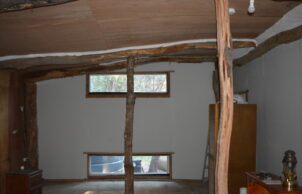

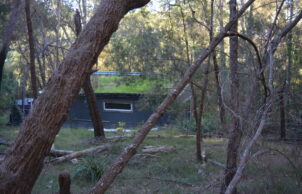

The site also has a neighbouring old shed used for honey processing overflow of gear and storage. It was built with mostly dead timber from the site saving timber and storing carbon and reducing any transport of materials and has a green roof.

Sustainability Features

Years Open
2021
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
      Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Earth covering
      External planting
      Passive solar designed home
      Shading
      Thermal mass
    • Water heating:

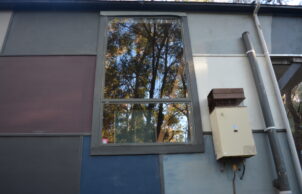

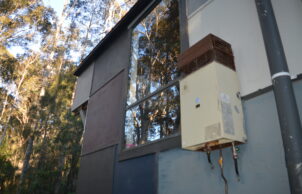

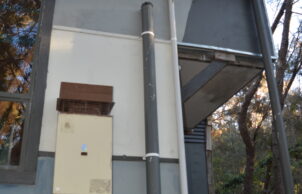

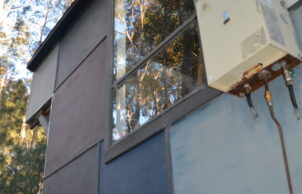

    • gass
    • Water harvesting and saving features:

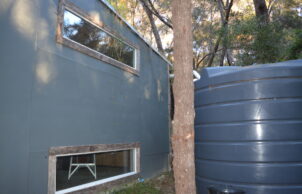

    • Rainwater storage - Above ground
      Compost toilet
      Low flow shower heads
    • Above ground rainwater storage Type:
    • tanks
    • Above ground rainwater storage Size
    • 30000
    • Energy Efficient Lighting
    • LED lights throughout
      Natural daylight
    • Window Protection:

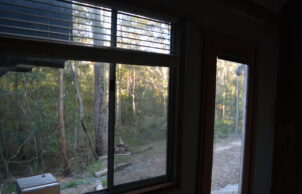

    • Blinds
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Basins/sinks
      Bath
      Bathroom cabinets
      Cladding
      Decking
      Doors
      House - all materials reused
      Glass

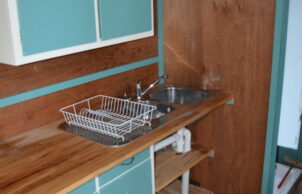

      Kitchen cabinets
      Metal sheeting
      Pallets
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      External walls
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • 2
    • Under Roof Insulation Rating:
    • 3
    • External Walls Rating:
    • 1.5
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • No
    • Renewable energy used:
    • Solar PV off-grid
    • Size of PV system:
    • 1
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • 20000
    • Cost estimate of sustainable home/features:
    • 0
    • Estimate of annual savings:
    • 1000
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 45
    • BAL Rating
    • BAL – 19: Increasing levels of ember attack and ignition of debris with a heat flux of up to 19kW/m2
    • Roof
    • Green roof
      Metal (Colorbond)
    • Wall Materials
    • Lightweight construction (timber frame)
      Timber
    • Window and Door Types
    • Sliding windows/doors
    • Number of bedrooms
    • 1
    • Number of bathrooms
    • 1
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Bee keeping
Location
Moruya NSW 2537
    • Housing Type:
    • Tiny Home - Transportable
    • Project Type:
    • New Build
    • Builder
    • Paul Cook
    • Designer
    • Paul Cook
