Trafalgar Sustainable Renovation 2020

This profile is written and maintained by the homeowner, architect, or builder. You can ask them questions about their home in the comments below.

Location
Trafalgar VIC 3824
    • Housing Type:
    • Standalone House
    • Project Type:
    • Renovation
    • Open with support of
    • Baw Baw Sustainability Network
    • Builder
    • Lexah Building
    • Designer
    • Avallon Building Design

About Trafalgar Sustainable Renovation

Our renovation has been a long time coming. When we moved here, we knew we would need to renovate; it just took us 13 years to get around to it. It was an early 70s traditional brick veneer farm house, with no insulation and orientated east/west, with only a poorly performing wood heater and ceiling fans in the bedrooms to assist with heating and cooling. This led many uncomfortable summer days and winter nights.

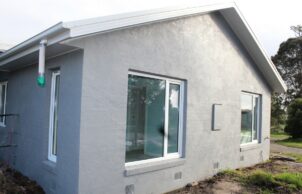

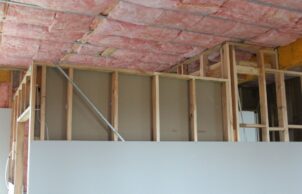

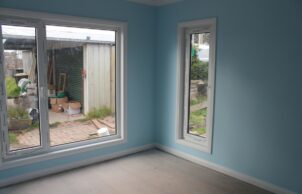

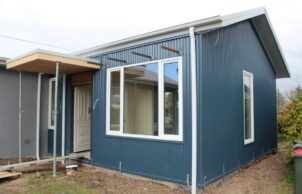

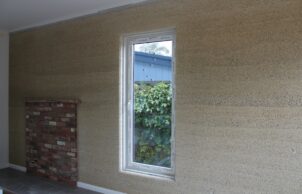

We stripped back the existing house to studs, moved a few walls to make the living space more homely, and added a new north-facing main living area on a waffle pod concrete slab. We have added extensive insulation in the ceilings, walls and floors where possible, and replaced all windows with uPVC framed double glazed units.

We have tried to reuse and recycle as much of the old building materials as possible. Some of the roof beams were repurposed to make the kitchen benchtop and shelving. The concrete from the old front verandah is being reused to make a patio at the back of the kitchen.

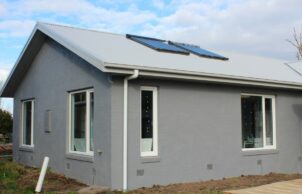

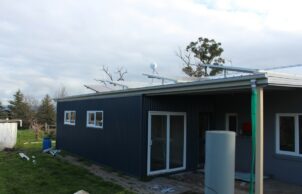

We have added extra panels onto our 5kW solar array, and have reused our existing evacuated tubes and electric storage hot water system. Being a rural property, our only water supply is rainwater storage tanks. The previous stormwater system needed to be updated, but we have kept what we could if it was still functioning as intended.

All the flowerbeds and plants were removed as part of the building works and we intend to plant deciduous flowering climbers on the new pergola on the north wall to help shade bedrooms from the intense summer sun, as well as shrubs and small trees on the west wall to take the edge off the afternoon summer heat.

We have gained great experiences and knowledge from visiting houses in previous years during Sustainable House Day, and now we are very excited to be nearing the end of our own renovations ready for this year’s virtual event. We look forward to sharing our new-found knowledge with like-minded homeowners.

View Featured Video

SUSTAINABLE FEATURES

Years Open
2020
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Efficient lighting
      Efficient appliances
    • Passive heating cooling:
    • Cross ventilation
      Deciduous planting around house
      Passive solar designed home
    • Active heating cooling:
    • Ceiling fans
    • Water heating:
    • Solar hot water (evacuated tube)
    • Water harvesting and saving features:
    • Rainwater storage - Above ground
    • Above ground rainwater storage Type:
    • rainwater tanks
    • Above ground rainwater storage Size
    • 60,000L
SUSTAINABLE & RECYCLED MATERIALS

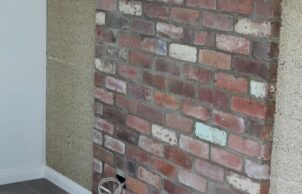

    • Recycled and reused materials:
    • Bricks
      Concrete
      Doors
      Floorboards
      Kitchen cabinets
      Timber
INSULATION SPECIFICATIONS
    • Insulation Type:
    • Under-roof
      Ceiling
      Internal walls
      External walls
      Floor
    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6.0
    • Floor Type:
    • Bulk - glass wool
    • Floor Rating:
    • R2.0
    • Under Roof Insulation Type:
    • Reflective foil
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R2.5
    • External Walls Type:
    • Bulk – glass wool
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 5kW
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 204m2
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Brick veneer
      Hemp
      Lightweight construction (timber frame)
      Metal (Colorbond)
    • Window and Door Types
    • Double glazing
      Low-e, films
      Tilt and turn
    • Universal design accessability
    • Universal access
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
GARDEN AND WASTE REDUCTION
    • Garden / Outdoors
    • Orchard
    • Waste Reduction Practices:
    • Compost all food scraps
      Make jams/conserves
      Recycle
      Waste free/reduced construction site
HEALTHY HOME FEATURES
    • Healthy home features
    • Low VOC paints/sealer/varnish
      Wax based sealer/finish
