Valley Views 2021

This profile is written and maintained by the homeowner, architect, or builder.

House Notes – Valley Views

This has been a journey of exhaustion and elation for Fiona and her family. After embarking on this journey, a little over two years ago with Kellett Design Group, Fiona was both clear and concise with her design brief. Although this was a challenging project financially it was clear from the very beginning that Fiona’s understanding of Passive House cemented the budgeting parameters for form and function.

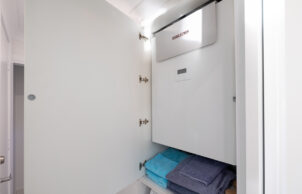

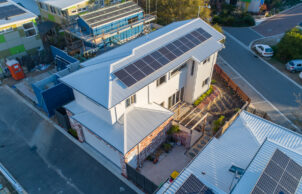

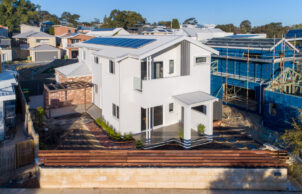

A premanufactured timber framed home complete with High performance insulation envelope throughout, high performance UPVC windows, thermal bridge free construction, an air tightness test result of 1.36 Ach/H n50, a Steibel Eltron Heat Recovery Ventilation system, a 3.6KW PV system, Rain water harvesting provision and a Steibel Eltron Hot water heat pump are all standard inclusions of this build and the reasoning behind such a high performance and healthy home.

After a relatively short period of design followed by some assistance from Fremantle council planning dept. the final design was settled and wow!!! The persistence for perfection is clearly visible when you walk through this beautiful home. Orientated North West with abundant streams of natural light and ample controlled solar heat gain every window in this home has been strategically placed to maximise the many views of this magnificent area. The views to the Royal Fremantle Golf course to the North slightly hindered by natural mature trees is breath-taking from many areas of the home both upstairs an downstairs The large windows to the beautiful large void area again on the Northern elevation cleverly picture frame the huge mature trees which hug the fringes of the golf course stretching up to that beautiful deep blue skyline we are so revered for here in WA.

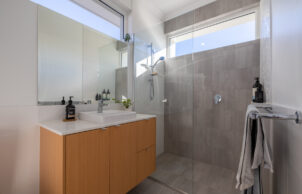

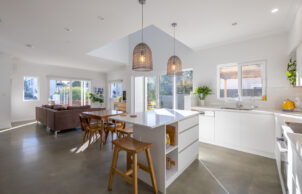

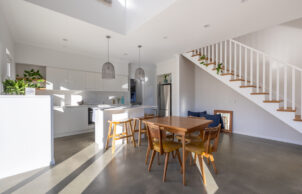

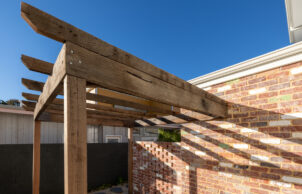

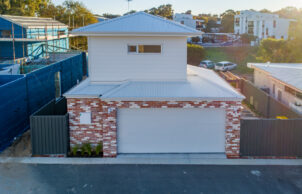

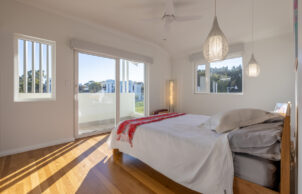

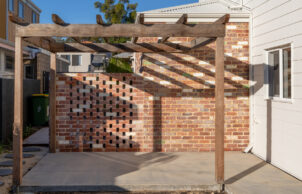

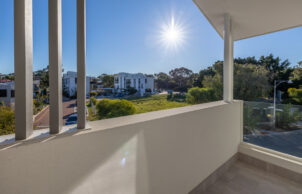

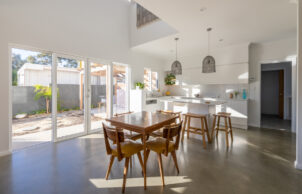

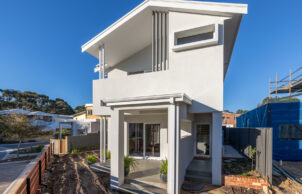

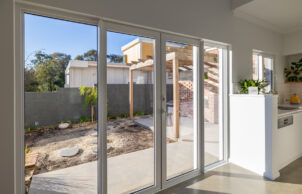

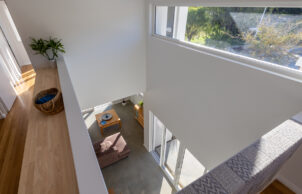

The luxurious master suite complete with large ensuite and private balcony provides beauty and sanctuary to enjoy those beautiful western sunsets. The balcony is also complimented by an architectural vertical louvered timber screen providing beautiful contrast to the front elevation of the building and protection from solar heat gain also. The lower floor consists of an open plan living, kitchen and dining room which opens up to a two storey void area in the centre. This is further complimented by the large High Performance UPVC Kommerling sliding doors opening up to the external courtyard/ entertaining area, providing streams of natural light whilst maintaining controlled levels of thermal head gain and Air Tightness. The External alfresco area finishes are exquisite and very much in line with the local area with a recycled jarrah pergola and recycled brick garage and breeze wall. A very picturesque area to unwind and let the days troubles fade away.

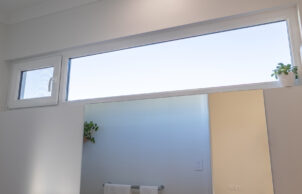

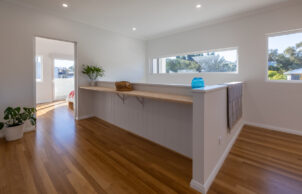

The upper floor consists of a large open plan area complete with study area which looks directly out through a beautiful window to the golf course. The large yoga area is complimented by a large bathroom adjacent to a large secondary bedroom with East facing high light window capturing the tree lines of Yalgoo Ave in the distance. Another example of the specific design detailing accomplished with this design.

This will be one of the most healthy and enjoyable homes to live in amongst its peers in the Sustainable precinct of White Gum valley.

SUSTAINABILITY FEATURES

Years Open
2021
ENERGY AND WATER EFFICIENT FEATURES
    • Energy efficiency:
    • Draught proofing
    • Passive heating cooling:
    • Heat recovery ventilation system
    • Active heating cooling:
    • Heat exchange ventilation system
      Split system airconditioner
    • Water heating:
    • Hot water heat pump
    • Window Protection:
    • Eaves
      External window hoods/surrounds
SUSTAINABLE & RECYCLED MATERIALS
    • Recycled and reused materials:
    • Recycled Jarrah for Pergola structure, Recycled Sand for building Pad
    • Recycled and reused materials:
    • Bricks
      Paving

INSULATION SPECIFICATIONS
    • Insulation Type:
    • Ceiling
      Internal walls
      External walls
      Floor

    • Ceiling Type:
    • Bulk – glass wool
    • Ceiling Rating:
    • R6.0
    • Floor Type:
    • Bulk - glass wool
    • Floor Rating:
    • 2.5
    • Other Insulation Methods:
    • R5.75 Tuffwall to selected walls in addition to existing lightweight framing
    • Internal Walls Insulation Type:
    • Bulk – glass wool
    • Internal Walls Insulation Rating:
    • R2.5
    • External Walls Rating:
    • R3.0
    • External Walls Type:
    • Insulated panel system
RENEWABLE ENERGY SPECIFICATIONS
    • All-Electric Home?
    • Yes
    • Energy star rating:
    • 9.2
    • Renewable energy used:
    • Solar PV grid connect
    • Size of PV system:
    • 3.6kW
    • Average Daily Energy Consumption:
    • 3.3kWh
COSTS AND COST SAVINGS
    • Total cost of home when constructed:
    • $389,200.00
    • Cost estimate of sustainable home/features:
    • $38,920
    • Estimate of annual savings:
    • $2200
HOUSE DESIGN SPECIFICATIONS
    • House Size
    • 146m²
    • BAL Rating
    • BAL – 12.5: Ember attack with heat up to 12.5kW/m2
    • Roof
    • Metal (Colorbond)
    • Wall Materials
    • Insulated panels or blocks
      Lightweight construction (timber frame)
      Timber

    • Wall Materials
    • Brick
    • Window and Door Types
    • Double glazing
      Sliding windows/doors
      Tilt and turn
    • Number of bedrooms
    • 3
    • Number of bathrooms
    • 2
HEALTHY HOME FEATURES
    • Healthy home features
    • Airtight house design
      Heat recovery ventilation (HRV)
Location
White Gum Valley WA 6162
    • Housing Type:
    • Standalone House
    • Project Type:
    • New Build
    • Builder
    • Ismart Building Group
    • Designer
    • Kellet Design Group
